CSEG090 THIN SECTION BEARING
CSEG090
Thin Section Bearing
CSEG090 Thin Section Bearing Dentification
CS: Thin section series
E: contact type_angular contact
G: cross section height 1”
090: inch size ( bearing bore 9 inch )

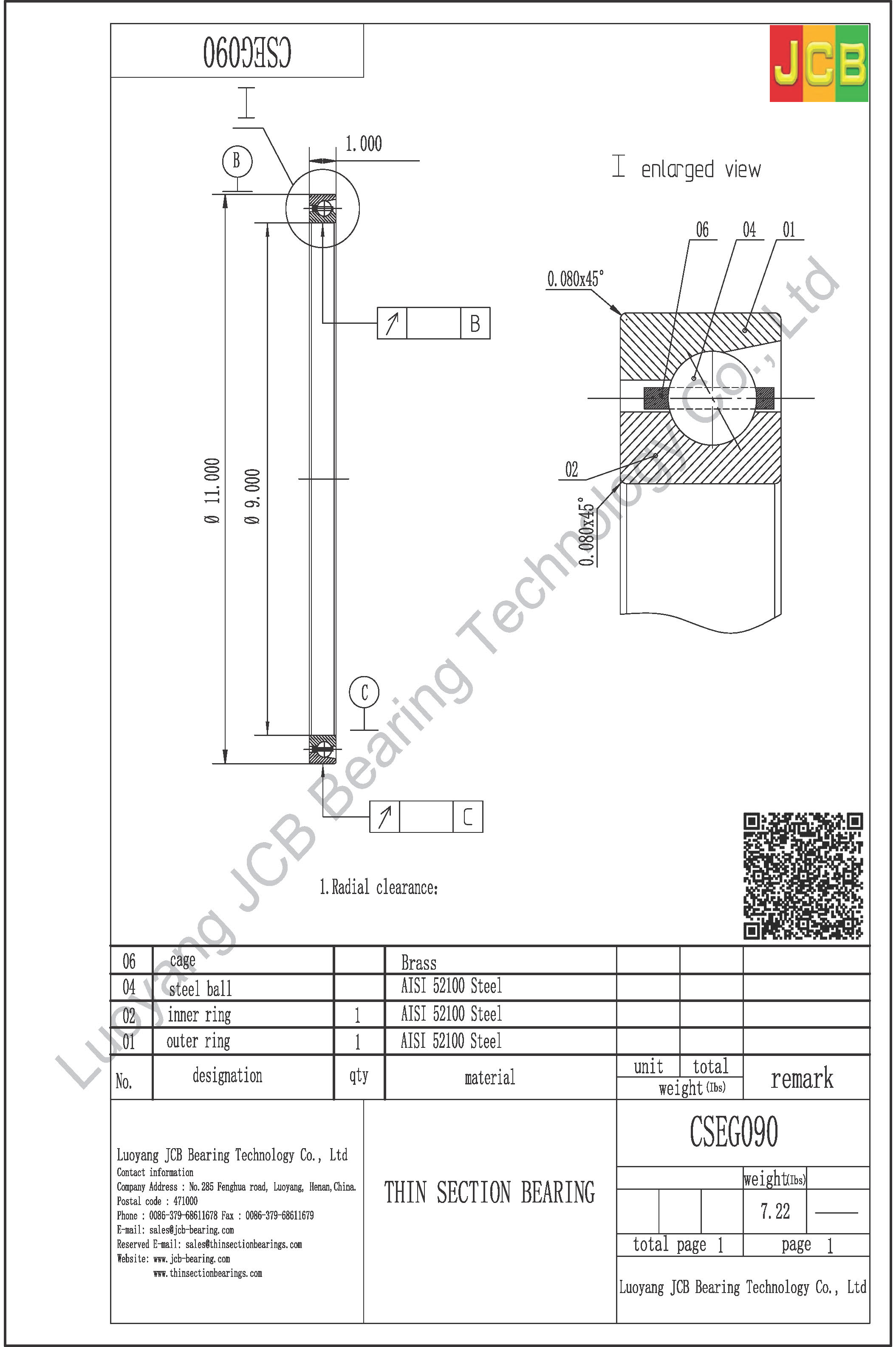

Please download rough drawing of thin section bearing for reference，formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
| Same As Specification Of CSEG090 Following Bearing Designation | ||||
| KG090AR0 | KG090AR0*JCB | CSEG090 | RG090AR0 | SG090AR0 |
CSEG090 Thin Section Bearing Specifications
| Inner Diameter (d) | 9.000″ |
| Inner Diameter Tolerance | -0.0012″– 0″ |
| For Housing ID | 11.000″ |
| Outer Diameter (D) | 11.000″ |
| Outer Diameter Tolerance | -0.0012″– 0″ |
| Width (B) | 1″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Angular contact ball |
| Contact Angle | 30° |
| Seal Type | Open |
| Cross Section | 1″ x 1″ |
| Weight(lbs) | 7.220 |
| Internal clearance | C0 |
| Operating temperature range | -65 to 250 °F |
| Radial dynamic load capacity | 29540 lbf |
| Radial static load capacity | 54720 lbf |
| Axial dynamic load capacity | 29540 lbf |
| Axial static load capacity | 44550 lbf |
| Bearing material | AISI 52100 |
| Ring material | AISI 52100 |
| Separator material | Brass |
| Separator type | Circular Pocket |
| Maximum rpm | 2000 rpm |
| Bearings designation | – |
Thin Section Bearing Descriptions
1、MATERIAL AISI52100 :
| Country | Standard | Steel Grade |
| AMERICA | AISI ASTM/A295 | 52100 |
| GERMANY | DIN 17030 | 100Cr6 |
| JAPAN | JIS G4805 | SUJ2 |
| ENGLAND | BS 970 | EN31(535A99) |
| CHINA | GB/T 18254 | GCr15 |
| FRANCE | NF A35-565 | 100C6 |
| SWEDEN | SWEDEN | SKF3 |
| KOREA | KS D3525 | STB2 |
| RUSSIAN | TOCT 801 | IIIX15 |
2、SERIES STANDARD CROSS SECTION : 1.000 × 1.000 in
CSEG090 thin section bearing
3、CONTACT TYPE :
C : Radial Contact
E : Angular Contact
X : Four Point Contact
4、CROSS SECTION HEIGHT
AA : 3/16″
A : 1/4″
B : 5/16″
C : 3/8″
D : 1/2″
F : 3/4″
G : 1″
U : Non Square Section For Seals
5、SUFFIX
2RS : Increased Width With Two Seals
TV : Plastic Cage made from PA66
YP : brass sheet metal
