Thin Section Bearing

CSEA050 Thin Section Bearing Dentification

CS: Thin section series

E: contact type_angular contact

A: cross section height 1/4”

050: inch size ( bearing bore 5 inch )

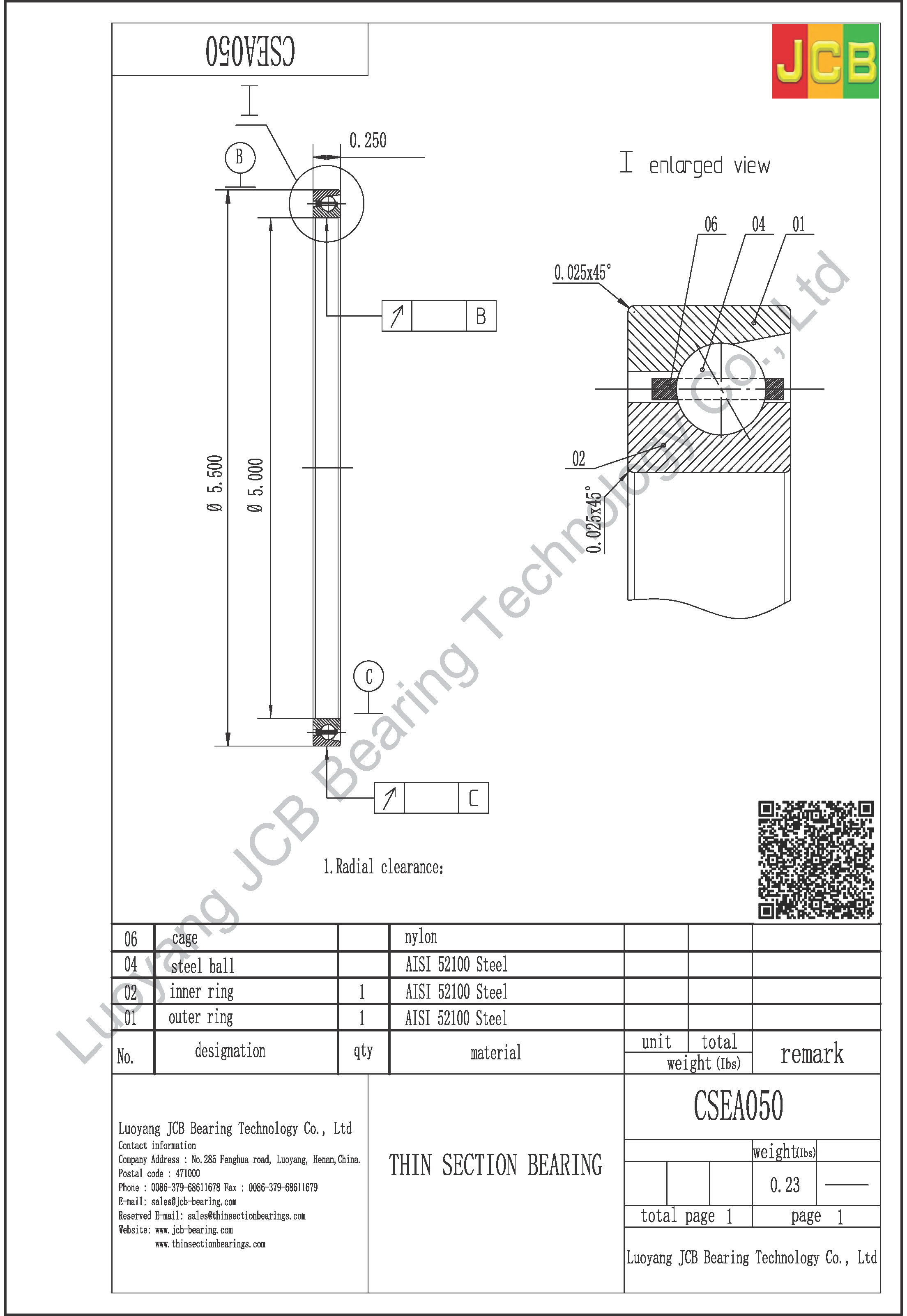

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

CSEA050 of thin section bearing.pdf

Part number comparison

Same As Specification Of CSEA050 Following Bearing Designation
KA050AR0KA050AR0*JCBCSEA050RA050AR0SA050AR0

CSEA050 Thin Section Bearing Specifications

Inner Diameter (d)5.000″
Inner Diameter Tolerance-0.0010″– 0″
For Housing ID5.500″
Outer Diameter (D)5.500″
Outer Diameter Tolerance-0.0008″– 0″
Width (B)0.2500″
Width Tolerance+.000 –.005″
Bearing typeAngular contact ball
Contact Angle30°
Seal TypeOpen
Cross Section1/4″ x 1/4″
Weight(lbs)0.230
Internal clearanceC0
Operating temperature range-65 to 250 °F
Radial dynamic load capacity2360 lbf
Radial static load capacity5310 lbf
Axial dynamic load capacity2360 lbf
Axial static load capacity4180 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass
Separator typeCircular Pocket
Maximum rpm3810 rpm
Bearings designation

Thin Section Bearing Descriptions

1、MATERIAL AISI52100 :
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION : 0.250 × 0.250 in
CSEA020 thin section bearing

CSEA050 thin section bearing

3、CONTACT TYPE :

C : Radial Contact

E : Angular Contact

X : Four Point Contact

4、CROSS SECTION HEIGHT

AA : 3/16″

A : 1/4″

B : 5/16″

C : 3/8″

D : 1/2″

F : 3/4″

G : 1″

U : Non Square Section For Seals

5、SUFFIX

2RS : Increased Width With Two Seals

TV : Plastic Cage made from PA66

YP : brass sheet metal
