NBC17707 thin section bearing
NBC17707
Thin Section Bearing
NBC17707 thin section bearing Dentification
N: Series
B: Ball bearing (thin section bearing)
C：Bearing Type_deep groove ball bearing
Bore: 177.800 (mm)
Width: 7.938 (mm)

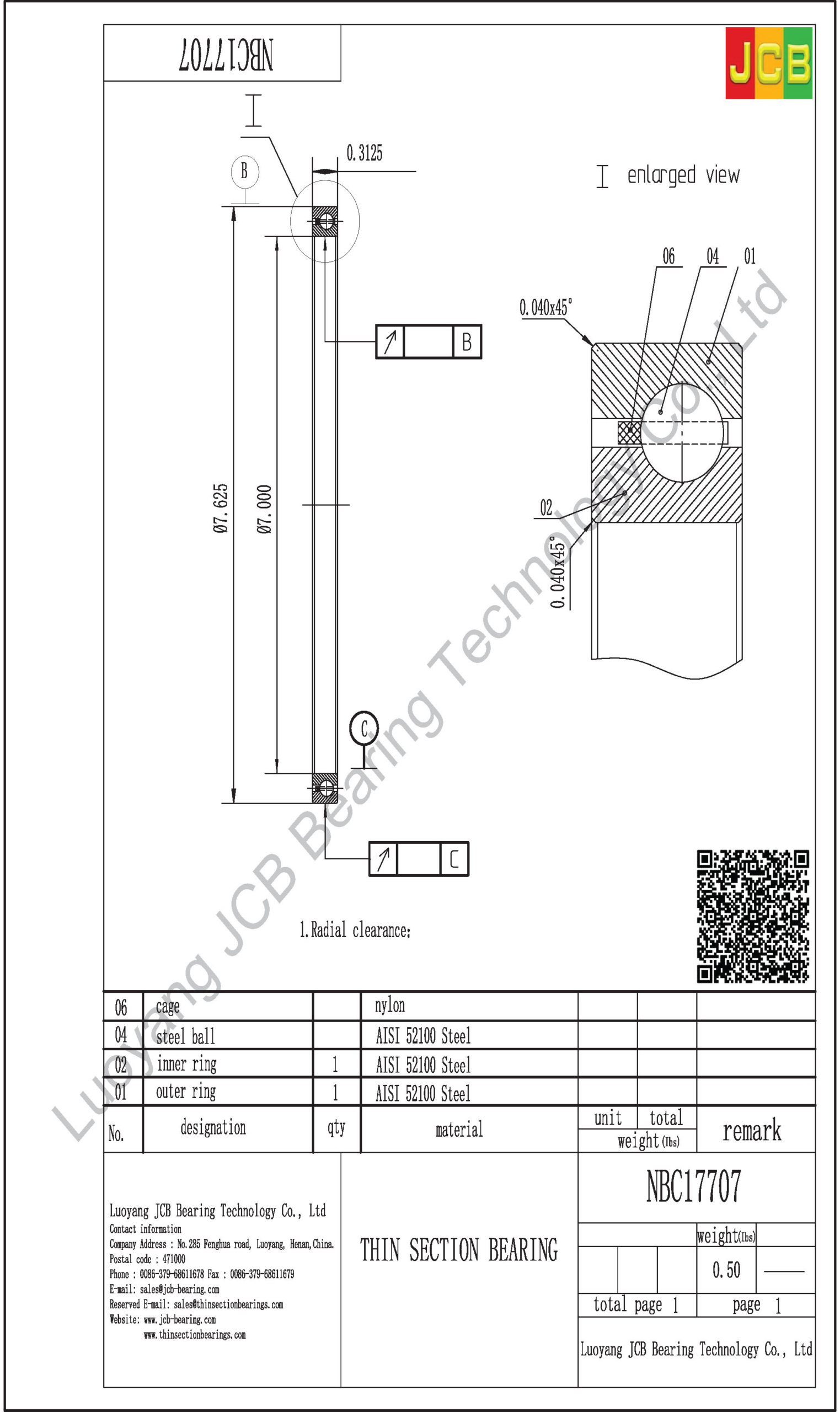

Please download rough drawing of thin section bearing for reference，formal drawing of thin section bearing NBC17707 will be submitted after contact with sales@jcb-bearing.com
Part number comparison
| Same As Specification Of NBC17707 Following Bearing Designation | |||||
| KB070CP0 | KB070CP0*JCB | CSCB070 | NBC17707 | RB070CP0 | SB070CP0 |
NBC17707 thin section bearing specifications
| Inner Diameter (d) | 7.000″ |
| Inner Diameter Tolerance | -0.0010″– 0″ |
| For Housing ID | 7.625″ |
| Outer Diameter (D) | 7.625″ |
| Outer Diameter Tolerance | -0.0012″– 0″ |
| Width (B) | 0.3125″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Radial contact ball |
| Contact Angle | – |
| Seal Type | Open |
| Cross Section | 5/16″ x 5/16″ |
| Weight(lbs) | 0.500 |
| Internal clearance | – |
| Operating temperature range | – |
| Radial dynamic load capacity | request by email |
| Radial static load capacity | – |
| Axial dynamic load capacity | request by email |
| Axial static load capacity | – |
| Bearing material | AISI 52100 |
| Ring material | AISI 52100 |
| Separator material | – |
| Separator type | – |
| Maximum rpm | – |
| Bearings designation | – |
NBC17707 Thin Section Bearing Descriptions
1、BEARING INSIDE STRUCTURE ：
NBA : Radial Type
NBC : Angular Type
NBX : Four-Point Contact Type
2、Bore Diameter:25.4-127.0 mm
NBC17707 THIN SECTION BEARING
3、SEPARATOR OR CAGE ：
No Symbol : Pressed Brass Cage
T : Synthetic Resin Cage
4、SEAL SYMBOL :
No Symbol : Open Type
D : Sealed On One Side
DD : Sealed On Both Sides
5、INTERNAL CLEARANCE :
| Nominal Bearing Bore Diameter(d:mm) | Deviation of a Single Inner Ring Width(⊿Bs:μm) | Single Plane Mean Bore Diameter Deviation(⊿dmp:μm) | Single Plane Mean Outside Diameter Deviation(⊿Dmp:μm) | Radial Internal Clearance(μm) | |||||
| over | incl | high | low | high | low | high | low | min | max |
| – | 25.400 | 0 | -127 | 0 | -10 | 0 | -13 | 25 | 41 |
| 25.400 | 38.100 | 0 | -127 | 0 | -13 | 0 | -13 | 30 | 46 |
| 38.100 | 63.500 | 0 | -127 | 0 | -15 | 0 | -13 | 30 | 61 |
| 63.500 | 76.200 | 0 | -127 | 0 | -15 | 0 | -15 | 30 | 61 |
| 76.200 | 101.600 | 0 | -127 | 0 | -20 | 0 | -15 | 41 | 71 |
| 101.600 | 114.300 | 0 | -127 | 0 | -20 | 0 | -20 | 41 | 71 |
| 114.300 | 127.000 | 0 | -127 | 0 | -25 | 0 | -20 | 51 | 86 |
| 127.000 | 165.100 | 0 | -127 | 0 | -25 | 0 | -25 | 51 | 86 |
| 165.100 | 177.800 | 0 | -127 | 0 | -25 | 0 | -30 | 51 | 86 |
| 177.800 | 228.600 | 0 | -127 | 0 | -30 | 0 | -30 | 61 | 107 |
| 226.600 | 304.800 | 0 | -127 | 0 | -36 | 0 | -36 | 71 | 122 |
| 304.800 | 355.600 | 0 | -254 | 0 | -41 | 0 | -41 | 81 | 132 |
| 355.600 | 457.200 | 0 | -254 | 0 | -46 | 0 | -46 | 91 | 142 |
| 457.200 | 508.000 | 0 | -254 | 0 | -51 | 0 | -51 | 102 | 152 |
| 508.000 | 762.000 | 0 | -254 | 0 | -76 | 0 | -76 | 152 | 203 |
5、ACCURACY CLASS：
PK1 , PK3 , PK4
Similar products of NBC17707 thin section bearing
| Bearing No. | Bearing No. | Bearing No. |
| NBC 17707 | NBC 17707 PK3 | NBC 17707 PK4 |
| NBC 17707 D | NBC 17707 D PK3 | NBC 17707 D PK4 |
| NBC 17707 DD | NBC 17707 DD PK3 | NBC 17707 DD PK4 |
| NBC 17707 T | NBC 17707 T PK3 | NBC 17707 T PK4 |
| NBC 17707 T D | NBC 17707 T D PK3 | NBC 17707 T D PK4 |
| NBC 17707 T DD | NBC 17707 T DD PK3 | NBC 17707 T DD PK4 |
