NBC8806
Thin Section Bearing
NBC8806 thin section bearing Dentification
N: Series
B: Ball bearing (thin section bearing)
C:Bearing Type_deep groove ball bearing
Bore: 88.900 (mm)
Width: 6.350 (mm)

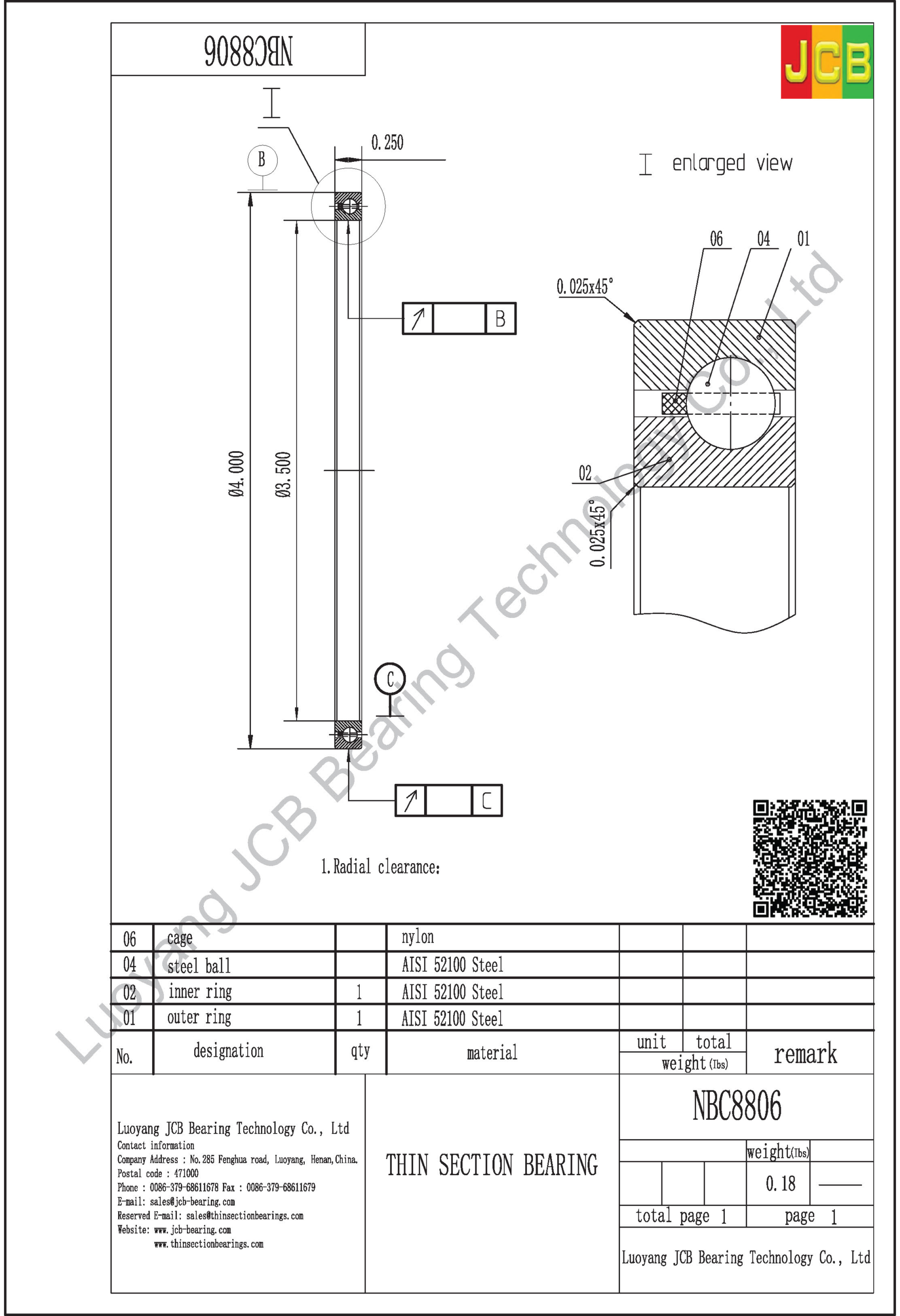

Please download rough drawing of thin section bearing for reference,formal drawing of thin section bearing NBC8806 will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of NBC8806 Following Bearing Designation | |||||
KA035CP0 | KA035CP0*JCB | CSCA035 | NBC8806 | RA035CP0 | SA035CP0 |
NBC8806 thin section bearing specifications
Inner Diameter (d) | 3.500″ |
Inner Diameter Tolerance | -0.0008″–0″ |
For Housing ID | 4.000″ |
Outer Diameter (D) | 4.000″ |
Outer Diameter Tolerance | -0.0006″–0″ |
Width (B) | 0.2500″ |
Width Tolerance | +.000 –.005″ |
Bearing type | Radial contact ball |
Contact Angle | – |
Seal Type | Open |
Cross Section | 1/4″ x 1/4″ |
Weight(lbs) | 0.180 |
Internal clearance | C0 |
Operating temperature range | -60 to 250 °F |
Radial dynamic load capacity | 690 lbf |
Radial static load capacity | 1140 lbf |
Axial dynamic load capacity | – |
Axial static load capacity | – |
Bearing material | AISI 52100 |
Ring material | AISI 52100 |
Separator material | Brass/Non-Metallic |
Separator type | Circular Pocket |
Maximum rpm | 5330 rpm |
Bearings designation | – |
NBC8806 Thin Section Bearing Descriptions
1、BEARING INSIDE STRUCTURE :
NBA : Radial Type
NBC : Angular Type
NBX : Four-Point Contact Type
2、Bore Diameter:25.4-127.0 mm
3、SEPARATOR OR CAGE :
No Symbol : Pressed Brass Cage
T : Synthetic Resin Cage
4、SEAL SYMBOL :
No Symbol : Open Type
D : Sealed On One Side
DD : Sealed On Both Sides
5、INTERNAL CLEARANCE :
Nominal Bearing Bore Diameter(d:mm) | Deviation of a Single Inner Ring Width(⊿Bs:μm) | Single Plane Mean Bore Diameter Deviation(⊿dmp:μm) | Single Plane Mean Outside Diameter Deviation(⊿Dmp:μm) | Radial Internal Clearance(μm) | |||||
over | incl | high | low | high | low | high | low | min | max |
– | 25.400 | 0 | -127 | 0 | -10 | 0 | -13 | 25 | 41 |
25.400 | 38.100 | 0 | -127 | 0 | -13 | 0 | -13 | 30 | 46 |
38.100 | 63.500 | 0 | -127 | 0 | -15 | 0 | -13 | 30 | 61 |
63.500 | 76.200 | 0 | -127 | 0 | -15 | 0 | -15 | 30 | 61 |
76.200 | 101.600 | 0 | -127 | 0 | -20 | 0 | -15 | 41 | 71 |
101.600 | 114.300 | 0 | -127 | 0 | -20 | 0 | -20 | 41 | 71 |
114.300 | 127.000 | 0 | -127 | 0 | -25 | 0 | -20 | 51 | 86 |
127.000 | 165.100 | 0 | -127 | 0 | -25 | 0 | -25 | 51 | 86 |
165.100 | 177.800 | 0 | -127 | 0 | -25 | 0 | -30 | 51 | 86 |
177.800 | 228.600 | 0 | -127 | 0 | -30 | 0 | -30 | 61 | 107 |
226.600 | 304.800 | 0 | -127 | 0 | -36 | 0 | -36 | 71 | 122 |
304.800 | 355.600 | 0 | -254 | 0 | -41 | 0 | -41 | 81 | 132 |
355.600 | 457.200 | 0 | -254 | 0 | -46 | 0 | -46 | 91 | 142 |
457.200 | 508.000 | 0 | -254 | 0 | -51 | 0 | -51 | 102 | 152 |
508.000 | 762.000 | 0 | -254 | 0 | -76 | 0 | -76 | 152 | 203 |
5、ACCURACY CLASS:
PK1 , PK3 , PK4
Similar products of NBC8806 thin section bearing
Bearing No. | Bearing No. | Bearing No. |
NBC 8806 | NBC 8806 PK3 | NBC 8806 PK4 |
NBC 8806 D | NBC 8806 D PK3 | NBC 8806 D PK4 |
NBC 8806 DD | NBC 8806 DD PK3 | NBC 8806 DD PK4 |
NBC 8806 T | NBC 8806 T PK3 | NBC 8806 T PK4 |
NBC 8806 T D | NBC 8806 T D PK3 | NBC 8806 T D PK4 |
NBC 8806 T DD | NBC 8806 T DD PK3 | NBC 8806 T DD PK4 |
