NBA6307 thin section bearing Dentification

N: Series

B: Ball bearing (thin section bearing)

A:Bearing Type_angular contact ball bearing

Bore: 63.500 (mm)

Width: 7.938 (mm)

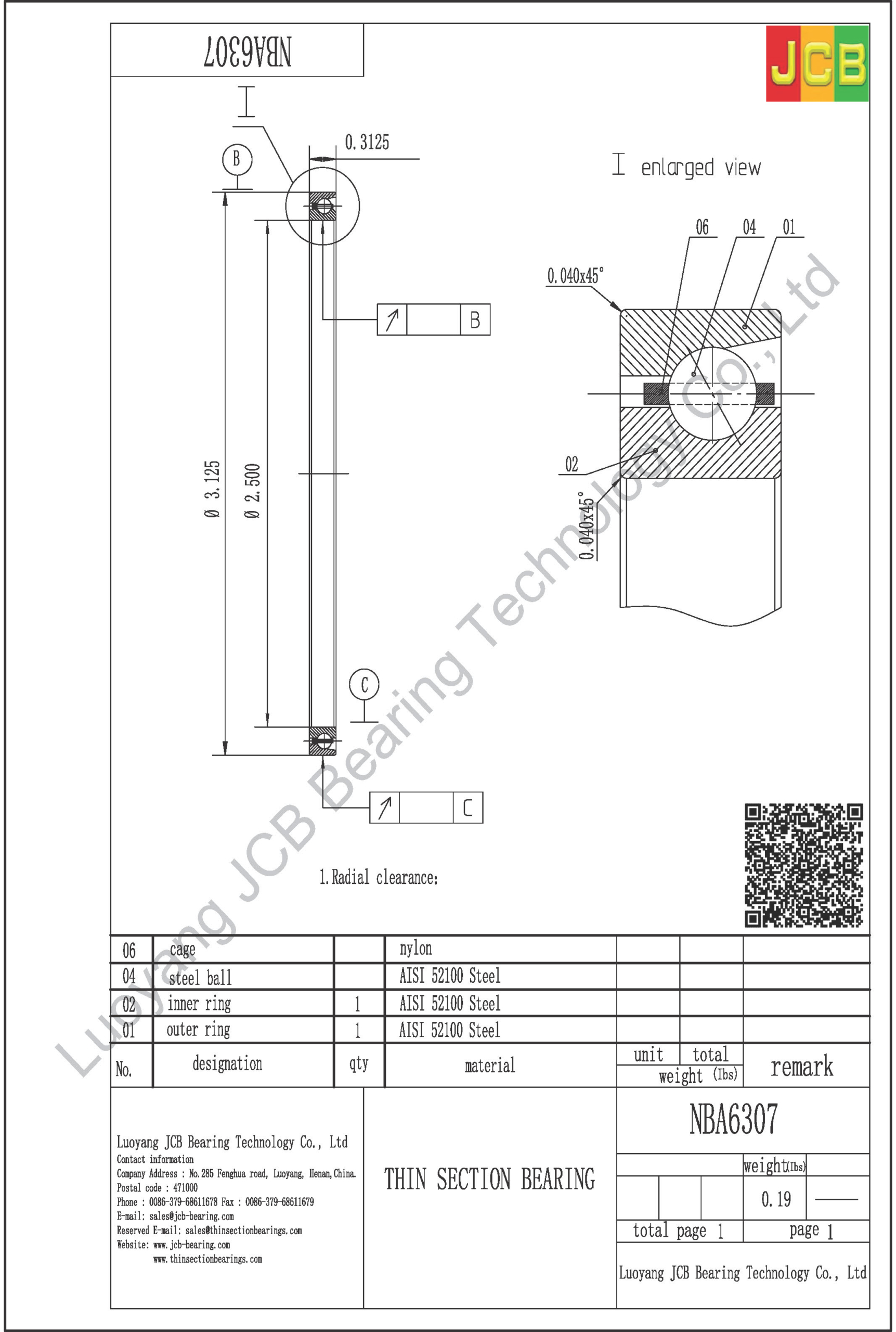

Please download rough drawing of thin section bearing  for reference,formal drawing of thin section bearing NBA6307 will be submitted after contact with sales@jcb-bearing.com

NBA6307 of thin section bearing.pdf

Part number comparison

Same As Specification Of NBA6307 Following Bearing Designation
KB025AR0KB025AR0*JCBCSEB025NBA6307RB025AR0SB025AR0

NBA6307 Thin Section Bearing Specifications

Inner Diameter (d)2.500″
Inner Diameter Tolerance-0.0006″– 0″
For Housing ID3.125″
Outer Diameter (D)3.125″
Outer Diameter Tolerance-0.0005″– 0″
Width (B)0.3125″
Width Tolerance+.000 –.005″
Bearing typeAngular contact ball
Contact Angle30°
Seal TypeOpen
Cross Section5/16″ x 5/16″
Weight(lbs)0.190
Internal clearanceC0
Operating temperature range-65 to 250 °F
Radial dynamic load capacity2680 lbf
Radial static load capacity3860 lbf
Axial dynamic load capacity2680 lbf
Axial static load capacity3060 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass
Separator typeCircular Pocket
Maximum rpm7110 rpm
Bearings designation

NBA6307 Thin Section Bearing Descriptions

1、BEARING INSIDE STRUCTURE :

NBA : Radial Type

NBC : Angular Type

NBX : Four-Point Contact Type

2、Bore Diameter:25.4-127.0 mm
NBA6307 thin section bearing

NBA6307 thin section bearing

3、SEPARATOR OR CAGE :

No Symbol : Pressed Brass Cage

T : Synthetic Resin Cage

4、SEAL SYMBOL :

No Symbol : Open Type

D : Sealed On One Side

DD : Sealed On Both Sides

5、INTERNAL CLEARANCE :
Nominal Bearing Bore Diameter(d:mm)Single Plane Mean Bore Diameter Deviation(⊿dmp:μm)Single Plane Mean Outside Diameter Deviation(⊿Dmp:μm)Deviation of a Single Inner Ring Width(⊿Bs:μm)Radial Internal Clearance(μm)
overinclhighlowhighlowhighlowminmax
25.400 0-100-130-1272538
25.400 38.100 0-130-130-1273043
38.100 63.500 0-150-130-1273056
63.500 76.200 0-150-150-1273056
76.200 101.600 0-200-150-1274166
101.600 114.300 0-200-200-1274166
114.300 127.000 0-250-200-1275176
127.000 165.100 0-250-250-1275176
165.100 177.800 0-250-300-1275176
177.800 228.600 0-300-300-1276186
226.600 304.800 0-360-360-1277197
304.800 355.600 0-360-360-2547197
355.600 457.200 0-410-410-25481107
457.200 762.000 0-460-460-25491117
762.000 1016.000 0-510-510-254102127
5、ACCURACY CLASS:

PK1 , PK3 , PK4

Similar Products Of NBA6307 Thin Section Bearing

Bearing No.Bearing No.Bearing No.
NBA 6307NBA 6307 PK3NBA 6307 PK4
NBA 6307 DNBA 6307 D PK3NBA 6307 D PK4
NBA 6307 DDNBA 6307 DD PK3NBA 6307 DD PK4
NBA 6307 TNBA 6307 T PK3NBA 6307 T PK4
NBA 6307 T DNBA 6307 T D PK3NBA 6307 T D PK4
NBA 6307 T DDNBA 6307 T DD PK3NBA 6307 T DD PK4
