CSCAA010-TV THIN SECTION BEARING
CSCAA010-TV
Thin Section Bearing
CSCAA010-TV Thin Section Bearing Dentification
CS: thin section series
C : contact type_radial contact
AA : cross section height 3/16”
10: inch size ( bearing bore 1 inch )

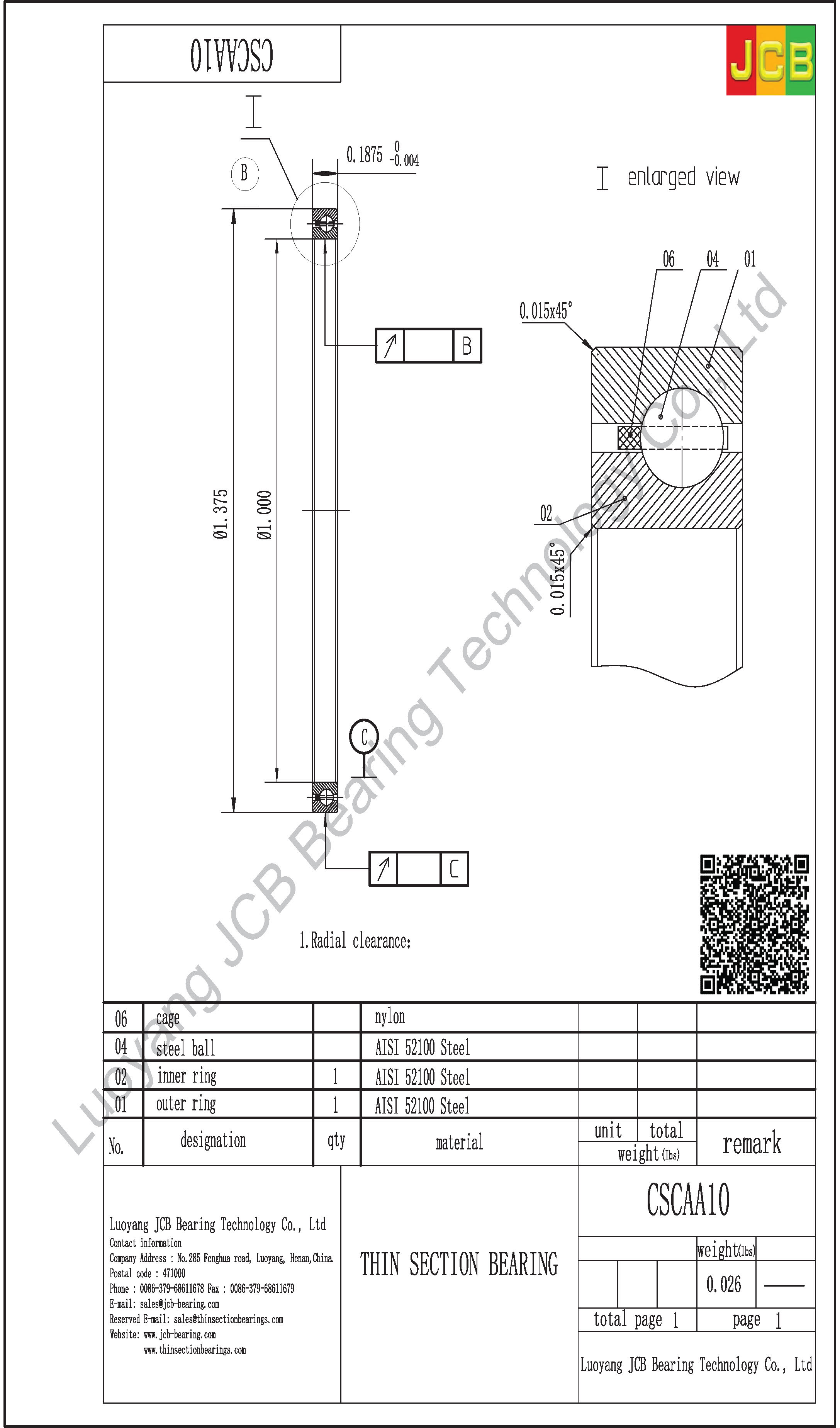

Please download rough drawing of thin section bearing for reference，formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
| Same As Specification Of CSCAA010-TV Following Bearing Designation | |||||
| KAA10CL0 | KAA10CL0*JCB | CSCAA010-TV | NBC2504 | RAA10CL0 | SAA10CL0 |
CSCAA010-TV Thin Section Bearing Specifications
| Inner Diameter (d) | 1.000″ |
| Inner Diameter Tolerance | -0.0004″ – 0″ |
| For Housing ID | 1.375″ |
| Outer Diameter (D) | 1.375″ |
| Outer Diameter Tolerance | -0.0005″ – 0″ |
| Width (B) | 0.1875″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Radial contact ball |
| Contact Angle | – |
| Seal Type | Open |
| Cross Section | 3/16″ x 3/16″ |
| Weight(lbs) | 0.026 |
| Internal clearance | C0 |
| Operating temperature range | -60 to 250 °F |
| Radial dynamic load capacity | 300 lbf |
| Radial static load capacity | 290 lbf |
| Axial dynamic load capacity | – |
| Axial static load capacity | – |
| Bearing material | AISI 52100 |
| Ring material | AISI 52100 |
| Separator material | GFR Nylon |
| Separator type | Circular Pocket |
| Maximum rpm | 16840 rpm |
| Bearings designation | – |
Thin Section Bearing Descriptions
1、MATERIAL AISI52100 :
| Country | Standard | Steel Grade |
| AMERICA | AISI ASTM/A295 | 52100 |
| GERMANY | DIN 17030 | 100Cr6 |
| JAPAN | JIS G4805 | SUJ2 |
| ENGLAND | BS 970 | EN31(535A99) |
| CHINA | GB/T 18254 | GCr15 |
| FRANCE | NF A35-565 | 100C6 |
| SWEDEN | SWEDEN | SKF3 |
| KOREA | KS D3525 | STB2 |
| RUSSIAN | TOCT 801 | IIIX15 |
2、CONTACT TYPE :
C : Radial Contact
E : Angular Contact
X : Four Point Contact

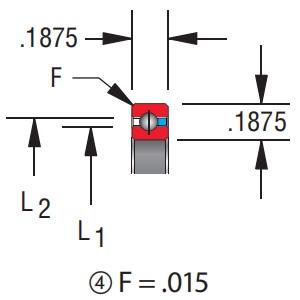

3、SERIES STANDARD CROSS SECTION : 0.1875 ×0.1875 in
CSCAA010-TV thin section bearing
4、CROSS SECTION HEIGHT
AA : 3/16″
A : 1/4″
B : 5/16″
C : 3/8″
D : 1/2″
F : 3/4″
G : 1″
U : Non Square Section For Seals
5、SUFFIX
2RS : Increased Width With Two Seals
TV : Plastic Cage made from PA66
YH : brass sheet metal
