CSCB025
CSCB025 Thin Section Bearing Dentification
CS: thin section series
C : contact type_radial contact
B: cross section height 5/16”
025: inch size ( bearing bore 2.5 inch )

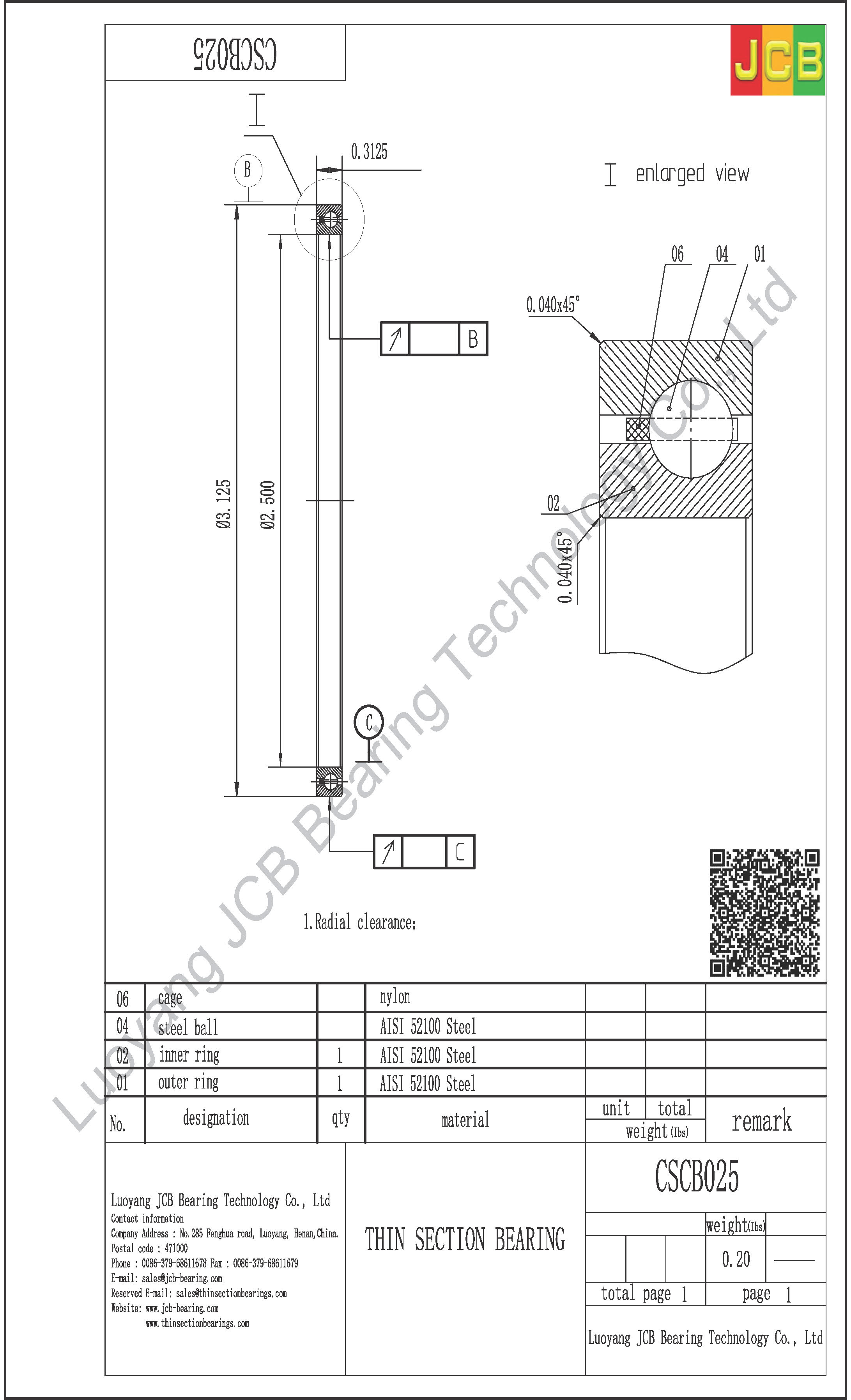

Please download rough drawing of thin section bearing for reference,will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of CSCB025 Following Bearing Designation | |||||
KB025CP0 | KB025CP0*JCB | CSCB025 | NBC6307 | RB025CP0 | SB025CP0 |
CSCB025 Thin Section Bearing Specifications
Inner Diameter (d) | 2.500″ |
Inner Diameter Tolerance | -0.0006″– 0″ |
For Housing ID | 3.125″ |
Outer Diameter (D) | 3.125″ |
Outer Diameter Tolerance | -0.0005″– 0″ |
Width (B) | 0.3125″ |
Width Tolerance | +.000 –.005″ |
Bearing type | Radial contact ball |
Contact Angle | – |
Seal Type | Open |
Cross Section | 5/16″ x 5/16″ |
Weight(lbs) | 0.200 |
Internal clearance | C0 |
Operating temperature range | -60 to 250 °F |
Radial dynamic load capacity | 860 lbf |
Radial static load capacity | 1140 lbf |
Axial dynamic load capacity | – |
Axial static load capacity | – |
Bearing material | AISI 52100 |
Ring material | AISI 52100 |
Separator material | Brass/Non-Metallic |
Separator type | Circular Pocket |
Maximum rpm | 7110 rpm |
Bearings designation | – |
Thin Section Bearing Descriptions
1、MATERIAL AISI52100 :
Country | Standard | Steel Grade |
AMERICA | AISI ASTM/A295 | 52100 |
GERMANY | DIN 17030 | 100Cr6 |
JAPAN | JIS G4805 | SUJ2 |
ENGLAND | BS 970 | EN31(535A99) |
CHINA | GB/T 18254 | GCr15 |
FRANCE | NF A35-565 | 100C6 |
SWEDEN | SWEDEN | SKF3 |
KOREA | KS D3525 | STB2 |
RUSSIAN | TOCT 801 | IIIX15 |
2、SERIES STANDARD CROSS SECTION : 0.3125 × 0.3125 in
3、CONTACT TYPE :
C : Radial Contact
E : Angular Contact
X : Four Point Contact
4、CROSS SECTION HEIGHT
AA : 3/16″
A : 1/4″
B : 5/16″
C : 3/8″
D : 1/2″
F : 3/4″
G : 1″
U : Non Square Section For Seals
5、SUFFIX
2RS : Increased Width With Two Seals
TV : Plastic Cage made from PA66
YH : brass sheet metal
