NBX16509 thin section bearing
NBX16509
Thin Section Bearing
NBX16509 thin section bearing Dentification
N: Series
B: Ball bearing (thin section bearing)
X: Bearing Type_four point contact
Bore: 165.100 (mm)
Width: 9.525 (mm)

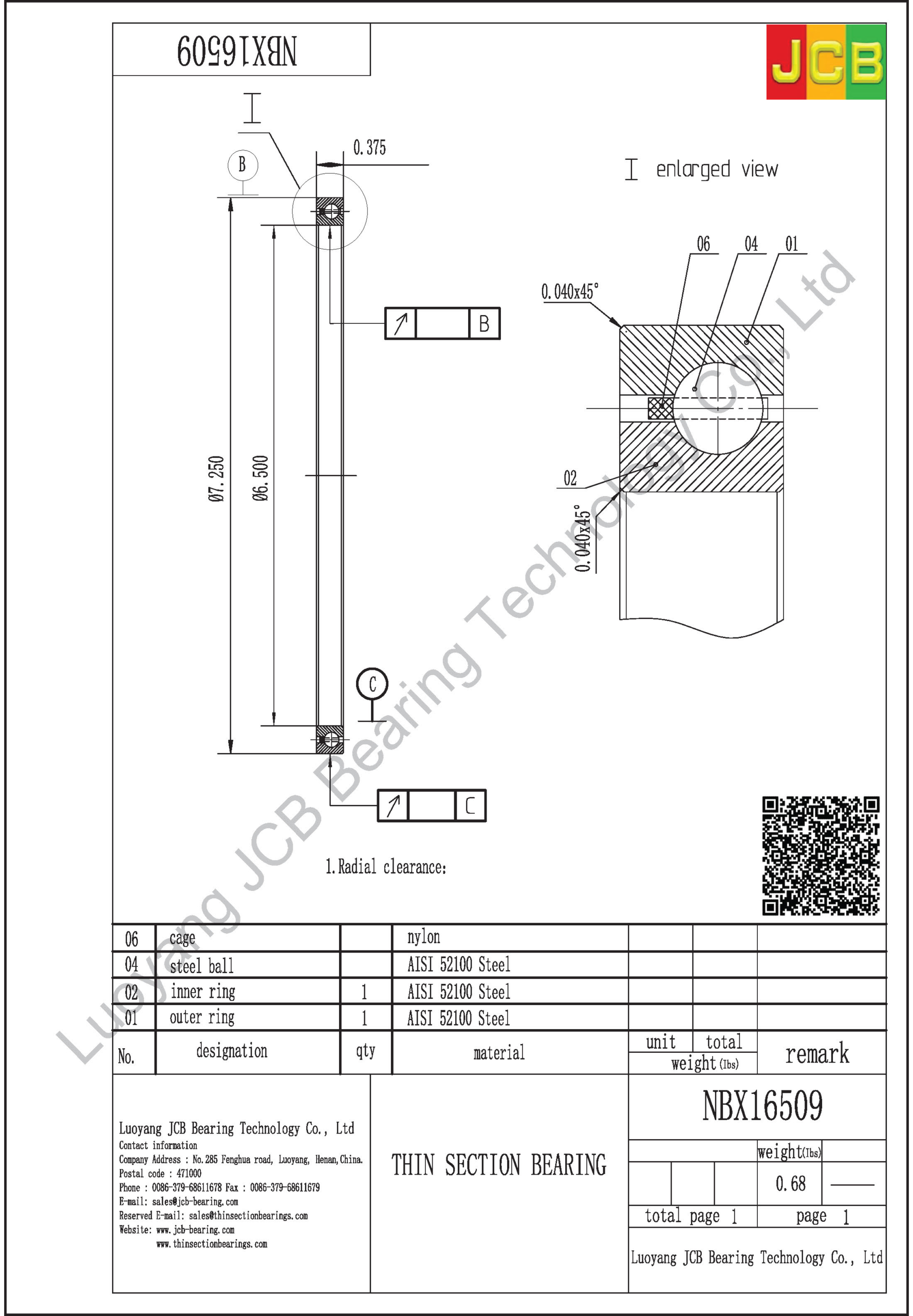

Please download rough drawing of thin section bearing for reference，formal drawing of thin section bearing NBX16509 will be submitted after contact with sales@jcb-bearing.com
Part number comparison
| Same As Specification Of NBX16509 Following Bearing Designation | |||||
| KC065XP0 | KC065XP0*JCB | CSXC065 | NBX16509 | RC065XP0 | SC065XP0 |
NBX16509 Thin Section Bearing Specifications
| Inner Diameter (d) | 6.500″ |
| Inner Diameter Tolerance | -0.0010″– 0″ |
| For Housing ID | 7.250″ |
| Outer Diameter (D) | 7.250″ |
| Outer Diameter Tolerance | -0.0010″– 0″ |
| Width (B) | 0.3750″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Four Point contact ball |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 3/8″ x 3/8″ |
| Weight(lbs) | 0.680 |
| Internal clearance | C0 |
| Operating temperature range | -65 to +250 °F |
| Radial dynamic load capacity | 2980 lbf |
| Radial static load capacity | 4790 lbf |
| Axial dynamic load capacity | 5740 lbf |
| Axial static load capacity | 11970 lbf |
| Bearing material | AISI 52100 |
| Ring material | AISI 52100 |
| Separator material | Brass/Composite |
| Separator type | Circular Pocket |
| Maximum rpm | 1750 rpm |
| Bearings designation | – |
NBX16509 Thin Section Bearing Descriptions
1、BEARING INSIDE STRUCTURE ：
NBA : Radial Type
NBC : Angular Type
NBX : Four-Point Contact Type
2、Bore Diameter:25.4-127.0 mm
NBX16509 thin section bearing
3、SEPARATOR OR CAGE ：
No Symbol : Pressed Brass Cage
T : Synthetic Resin Cage
4、SEAL SYMBOL :
No Symbol : Open Type
D : Sealed On One Side
DD : Sealed On Both Sides
5、INTERNAL CLEARANCE :
| Nominal Bearing Bore Diameter(d:mm) | Single Plane Mean Bore Diameter Deviation(⊿dmp:μm) | Single Plane Mean Outside Diameter Deviation(⊿Dmp:μm) | Deviation of a Single Inner Ring Width(⊿Bs:μm) | Radial Internal Clearance(μm) | |||||
| over | incl | high | low | high | low | high | low | min | max |
| – | 25.400 | 0 | -10 | 0 | -13 | 0 | -127 | 25 | 38 |
| 25.400 | 38.100 | 0 | -13 | 0 | -13 | 0 | -127 | 30 | 43 |
| 38.100 | 63.500 | 0 | -15 | 0 | -13 | 0 | -127 | 30 | 56 |
| 63.500 | 76.200 | 0 | -15 | 0 | -15 | 0 | -127 | 30 | 56 |
| 76.200 | 101.600 | 0 | -20 | 0 | -15 | 0 | -127 | 41 | 66 |
| 101.600 | 114.300 | 0 | -20 | 0 | -20 | 0 | -127 | 41 | 66 |
| 114.300 | 127.000 | 0 | -25 | 0 | -20 | 0 | -127 | 51 | 76 |
| 127.000 | 165.100 | 0 | -25 | 0 | -25 | 0 | -127 | 51 | 76 |
| 165.100 | 177.800 | 0 | -25 | 0 | -30 | 0 | -127 | 51 | 76 |
| 177.800 | 228.600 | 0 | -30 | 0 | -30 | 0 | -127 | 61 | 86 |
| 226.600 | 304.800 | 0 | -36 | 0 | -36 | 0 | -127 | 71 | 97 |
| 304.800 | 355.600 | 0 | -36 | 0 | -36 | 0 | -254 | 71 | 97 |
| 355.600 | 457.200 | 0 | -41 | 0 | -41 | 0 | -254 | 81 | 107 |
| 457.200 | 762.000 | 0 | -46 | 0 | -46 | 0 | -254 | 91 | 117 |
| 762.000 | 1016.000 | 0 | -51 | 0 | -51 | 0 | -254 | 102 | 127 |
5、ACCURACY CLASS：
PK1 , PK3 , PK4
Similar Products Of NBX16509 Thin Section Bearing
| Bearing No. | Bearing No. | Bearing No. |
| NBX 16509 | NBX 16509 PK3 | NBX 16509 PK4 |
| NBX 16509 D | NBX 16509 D PK3 | NBX 16509 D PK4 |
| NBX 16509 DD | NBX 16509 DD PK3 | NBX 16509 DD PK4 |
| NBX 16509 T | NBX 16509 T PK3 | NBX 16509 T PK4 |
| NBX 16509 T D | NBX 16509 T D PK3 | NBX 16509 T D PK4 |
| NBX 16509 T DD | NBX 16509 T DD PK3 | NBX 16509 T DD PK4 |
