KG055XP0
Thin Section Bearing
KG055XP0 Thin Section Bearing Dentification
K:Material AISI52100_no seals or shields
G:Series standard cross section_open bearing
055:Inch Size ( bearing bore 5.500 inch )
X: Bearing Type_four point contact
P: Separator_standard one piece formed ring with snap over pockets
0: Precision_precision class 1 per ABEC 1F

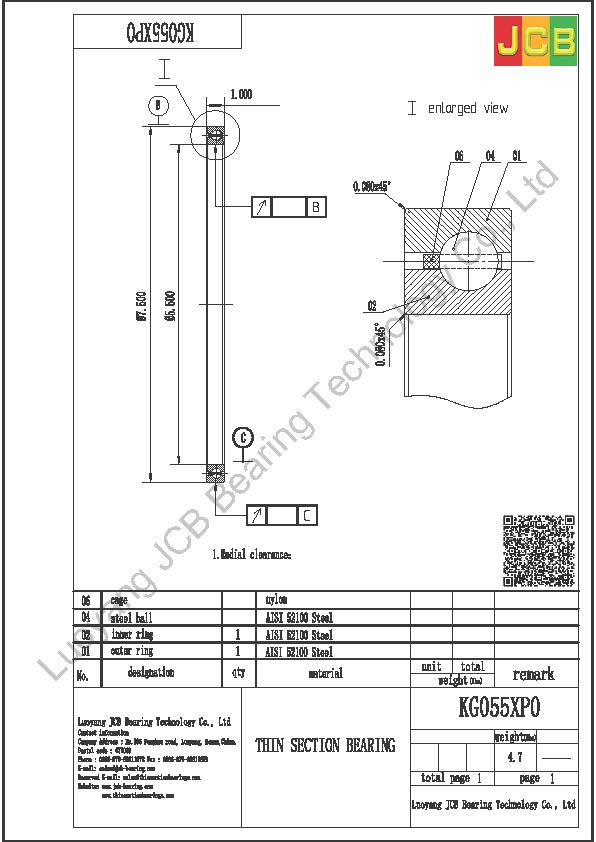

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of KG055XP0 Following Bearing Designation | ||||||||
KG055XP0 | RG055XP0 | CSXG055 | FPXG508 | L18WA508 | NBX13925 | KXG055 | SG055XP0 | KG055XP0*JCB |
KG055XP0 Thin Section Bearing Specifications
Inner Diameter (d) | 5.500″ |
Inner Diameter Tolerance | -0.0010″– 0″ |
For Housing ID | 7.500″ |
Outer Diameter (D) | 7.500″ |
Outer Diameter Tolerance | -0.0010″– 0″ |
Width (B) | 1″ |
Width Tolerance | +.000 –.005″ |
Bearing type | Four Point contact ball |
Contact Angle | – |
Seal Type | Open |
Cross Section | 1″ x 1″ |
Weight(lbs) | 4.700 |
Internal clearance | C0 |
Operating temperature range | -65 to +250 °F |
Radial dynamic load capacity | 955 lbf |
Radial static load capacity | 1900 lbf |
Axial dynamic load capacity | 1780 lbf |
Axial static load capacity | 4740 lbf |
Bearing material | AISI 52100 |
Ring material | AISI 52100 |
Separator material | Brass/Composite |
Separator type | Circular Pocket |
Maximum rpm | 1850 rpm |
Bearings designation | Request by email |
Thin Section Bearing Descriptions
1、MATERIAL AISI52100:
Country | Standard | Steel Grade |
AMERICA | AISI ASTM/A295 | 52100 |
GERMANY | DIN 17030 | 100Cr6 |
JAPAN | JIS G4805 | SUJ2 |
ENGLAND | BS 970 | 535A99 |
CHINA | GB/T 18254 | GCr15 |
FRANCE | NF A35-565 | 100C6 |
SWEDEN | SWEDEN | SKF3 |
KOREA | KS D3525 | STB2 |
RUSSIAN | TOCT 801 | IIIX15 |
2、SERIES STANDARD CROSS SSCTION:1.000″ × 1.000″
3、BEARING INSIDE STRUCTURE :
A : Angular contact single bearing (not ground for universal duplexing)
B : Angular contact pair—duplexed back to back
C : Radial contact
F : Angular contact pair—duplexed face to face
T : Angular contact pair—duplexed tandem
U : Angular contact single bearing—ground for universal duplexing
X : Four-point contact
Z : Other
4、SEPARATOR OR CAGE :
C : Non-metallic composite, segmental, “snap-over” type – C, X
D : Phenolic laminate, one-piece ring, “snap-over” type – C, X
E : Brass, segmental “snap-over” type – C, X
L : Nylon one-piece molded ring with “snap-over” pockets – C, X
N : Nylon molded strip with “snap-over” pockets – C, X
P : Standard one-piece formed ring with “snap-over” pockets- C, X
T : Stainless steel, formed ring “snap-over” type – C, X
V : Brass, formed ring, “snap-over” pockets – C, X
X : PEEK, one-piece molded ring with “snap-over” pockets – C, X
G : Nylon one-piece molded ring with circular pockets – A
H : Phenolic laminate one-piece machined ring with circular pockets – A
J : Nylon molded strip with circular pockets – A
K : Phenolic laminate, riveted two-piece ring type – A, C, X
Q : PEEK, one-piece molded ring with circular pockets – A
R : Standard one-piece formed ring with circular pockets – A
U : Stainless steel, formed ring circular pockets type – A
Y : Brass, formed ring, circular pockets type – A
M : Formed wire strip or segmental cage, “snap-over” pockets – A, C, X
W : Formed wire strip or segmental cage, “snap-over” pockets – C, X
F : Full complement bearing – A, C, X
S : Helical coil spring – C, X
Z : Other (toroid ball spacers, spacer slugs, spacer ball or others available) – A, C, X
5、ACCURACY CLASS:
ABEC 1F , ABEC 3F , ABEC 5F , ABEC 7F
6、BEARING INSIDE CLEARANCE:
A | 0.0000″to 0.0005″Clearance | K | 0.0000″to 0.0005″Preload |
B | 0.0000″to 0.0010″Clearance | L | 0.0000″to 0.0010″Preload |
C | 0.0005″to 0.0010″Clearance | M | 0.0005″to 0.0010″Preload |
D | 0.0005″to 0.0015″Clearance | N | 0.0005″to 0.0015″Preload |
E | 0.0010″to 0.0020″Clearance | P | 0.0010″to 0.0020″Preload |
F | 0.0015″to 0.0025″Clearance | Q | 0.0010″to 0.0015″Preload |
G | 0.0020″to 0.0030″Clearance | R | 0.0015″to 0.0025″Preload |
H | 0.0030″to 0.0040″Clearance | S | 0.0020″to 0.0030″Preload |
I | 0.0040″to 0.0050″Clearance | Z | Other clearance or preload not specified above |
J | 0.0050″to 0.0060″Clearance |
Similar Products Of KG055XP0 Thin Section Bearing
Bearing No. | Bearing No. | Bearing No. | Bearing No. | Bearing No. | Bearing No. |
KG055XP0 | KG055XP1 | KG055XP2 | KG055XP3 | KG055XP4 | KG055XP6 |
