JA040CP0 THIN SECTION BEARING

JA040CP0

Thin Section Bearing

JA040CP0 Thin Section Bearing Dentification

J:Material AISI 52100 Steel_two seals- nitrile rubber

A:Series standard cross section_sealed bearing

040:Inch Size ( bearing bore 4.000 inch )

C: Bearing Type_radial contact

P: Separator_standard one piece formed ring with snap over pockets

0: Precision_precision class 1 per ABEC 1F

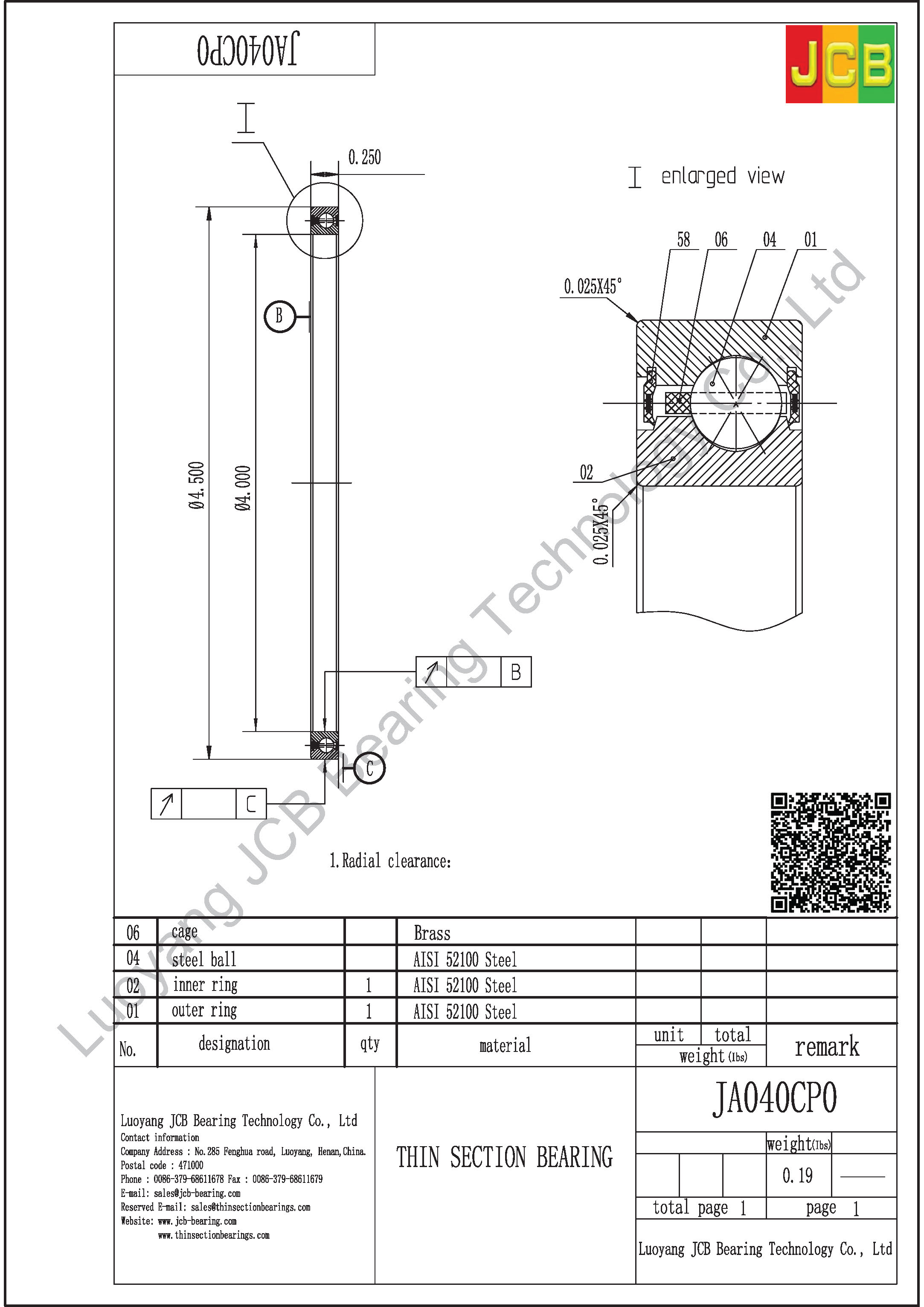

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

JA040CP0 of thin section bearing.pdf

Part number comparison

Same As Specification Of JA040CP0 Following Bearing Designation
JA040CP0JA040CP0*JCBRJA040CP0JSA040CP0

JA040CP0 Thin Section Bearing Specifications

Inner Diameter (d)4.000″
Inner Diameter Tolerance-0.0008″– 0″
For Housing ID4.500″
Outer Diameter (D)4.500″
Outer Diameter Tolerance-0.0006″– 0″
Width (B)0.2500″
Width Tolerance+.000 –.005″
Bearing typeRadial contact ball
Contact Angle
Seal TypeSealed
Cross Section1/4″ x 1/4″
Weight(lbs)0.190
Internal clearanceC0
Operating temperature range-60 to 250 °F
Radial dynamic load capacity720 lbf
Radial static load capacity1290 lbf
Axial dynamic load capacity
Axial static load capacity1290 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass/Non-Metallic
Separator typeCircular Pocket
Maximum rpm4710 rpm
Bearings designationRequest by email

Thin Section Bearing Descriptions

1、MATERIAL AISI52100:
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970535A99
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SSCTION:0.250″ × 0.250″
JA040CP0 thin section bearing

JA040CP0 thin section bearing

3、BEARING INSIDE STRUCTURE :

A : Angular contact single bearing (not ground for universal duplexing)

B : Angular contact pair—duplexed back to back

C : Radial contact

F : Angular contact pair—duplexed face to face

T : Angular contact pair—duplexed tandem

U : Angular contact single bearing—ground for universal duplexing

X : Four-point contact

Z : Other

4、SEPARATOR OR CAGE :

C : Non-metallic composite, segmental, “snap-over” type – C, X

D : Phenolic laminate, one-piece ring, “snap-over” type – C, X

E : Brass, segmental “snap-over” type – C, X

L : Nylon one-piece molded ring with “snap-over” pockets – C, X

N : Nylon molded strip with “snap-over” pockets – C, X

P : Standard one-piece formed ring with “snap-over” pockets- C, X

T : Stainless steel, formed ring “snap-over” type – C, X

V : Brass, formed ring, “snap-over” pockets – C, X

X : PEEK, one-piece molded ring with “snap-over” pockets – C, X

G : Nylon one-piece molded ring with circular pockets – A

H : Phenolic laminate one-piece machined ring with circular pockets – A

J : Nylon molded strip with circular pockets – A

K : Phenolic laminate, riveted two-piece ring type – A, C, X

Q : PEEK, one-piece molded ring with circular pockets – A

R : Standard one-piece formed ring with circular pockets – A

U : Stainless steel, formed ring circular pockets type – A

Y : Brass, formed ring, circular pockets type – A

M : Formed wire strip or segmental cage, “snap-over” pockets – A, C, X

W : Formed wire strip or segmental cage, “snap-over” pockets – C, X

F : Full complement bearing – A, C, X

S : Helical coil spring – C, X

Z : Other (toroid ball spacers, spacer slugs, spacer ball or others available) – A, C, X

5、ACCURACY CLASS:

ABEC 1F , ABEC 3F , ABEC 5F , ABEC 7F

6、BEARING INSIDE CLEARANCE:
A0.0000″to 0.0005″ClearanceK0.0000″to 0.0005″Preload
B0.0000″to 0.0010″ClearanceL0.0000″to 0.0010″Preload
C0.0005″to 0.0010″ClearanceM0.0005″to 0.0010″Preload
D0.0005″to 0.0015″ClearanceN0.0005″to 0.0015″Preload
E0.0010″to 0.0020″ClearanceP0.0010″to 0.0020″Preload
F0.0015″to 0.0025″ClearanceQ0.0010″to 0.0015″Preload
G0.0020″to 0.0030″ClearanceR0.0015″to 0.0025″Preload
H0.0030″to 0.0040″ClearanceS0.0020″to 0.0030″Preload
I0.0040″to 0.0050″ClearanceZOther clearance or preload not specified above
J0.0050″to 0.0060″Clearance

Similar Products Of JA040CP0 Thin Section Bearing

Bearing No.Bearing No.Bearing No.Bearing No.Bearing No.Bearing No.
JA040CP0JA040CP1JA040CP2JA040CP3JA040CP4JA040CP6
