Drawing
CSXG040 THIN SECTION BEARING
T01-00225PAA
Thin Section Bearing
T01-00225PAA Thin Section Bearing Dentification
T: 4-point contact radial ball bearing
01 : Ball size in (1/8)inch
00225: Ball pitch diameter in inches×100
P：Plain-no gear
A：Inner Holes Style of through holes
A：Outer Holes Style of through holes
Please download rough drawing of thin section bearing for reference，formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
| Same As Specification Of T01-00225PAA Following Bearing Designation | |||||
| T01-00225PAA | – | – | – | – | – |
T01-00225PAA Thin Section Bearing Specifications
| Inner Diameter (d) | 1.500″ |
| Inner Land | 2.148″ |
| For Housing ID | – |
| Outer Diameter (D) | 4.000″ |
| Outer Land | 2.356″ |
| Width (B) | – |
| Width Tolerance | – |
| Bearing type | Four Point contact ball |
| Contact Angle | – |
| Seal Type | – |
| Cross Section | – |
| Weight(lbs) | 0.35″ |
| Dynamic | Radial(lbs) | 520 |
| Thrust(lbs) | 790 | |
| Moment(in.-lbs) | 440 | |
| Static | Radial(lbs) | 680 |
| Thrust(lbs) | 1710 | |
| Moment(in.-lbs) | 770 | |
| Static Torque(in.-lbs) | 3.4 | |
| Bearing material | ||
| Ring material | ||
| Separator material | ||
T01-00225PAA Thin Section Bearing Descriptions

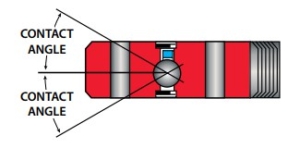

1、SERIES STANDARD CROSS SECTION
2、CONTACT TYPE :
C : Radial Contact
E : Angular Contact
X : Four Point Contact
