KAYDON THIN SECTION BEARING

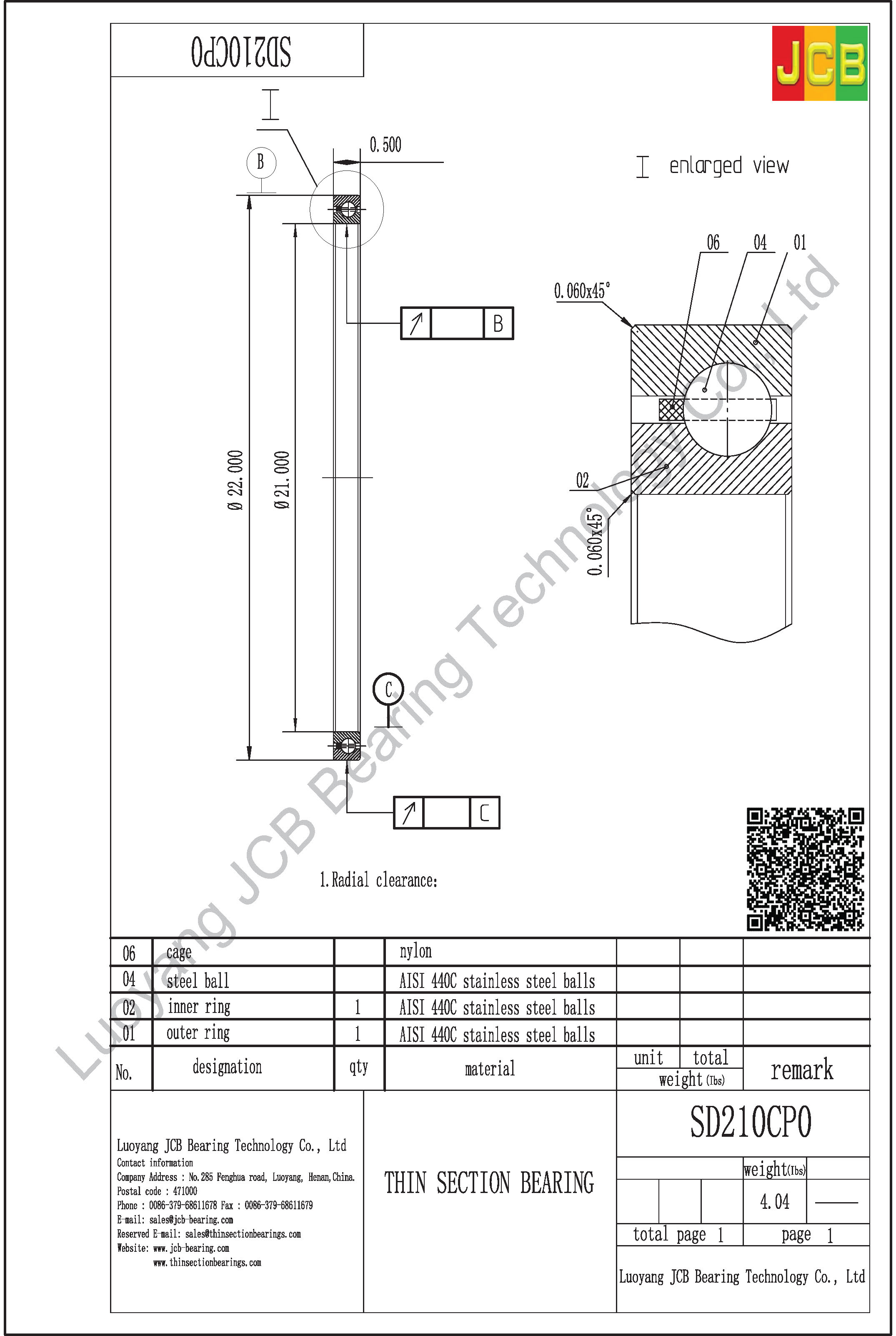

Drawing
SD210CP0
Dentification of thin section bearing SD210CP0
S：Material AISI440C Stainless Steel_no seals or shields
D：Series standard cross section_open bearings
210：Inch Size ( bearing bore 21.000 inch )
C: Bearing Type_radial contact
P: Separator_standard one piece formed ring with snap over pockets
0: Precision_kaydon precision class 1 per ABEC 1F
Please download rough drawing of thin section bearing for reference，formal drawing of thin section bearing SD210CP0 will be submitted after contact with sales@jcb-bearing.com
Specifications of SD210CP0
| For Shaft Diameter | 21.000″ |
| Inner Diameter (d) | 21.000″ |
| Inner Diameter Tolerance | -0.0020″– 0″ |
| For Housing ID | 22.000″ |
| Outer Diameter (D) | 22.000″ |
| Outer Diameter Tolerance | -0.0020″– 0″ |
| Width (B) | 0.5000″ |
| Width Tolerance | +.000 –.010″ |
| Bearing type | Radial contact ball |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 1/2″ x 1/2″ |
| Weight(lbs) | 4.040 |
