SB110XP0 THIN SECTION BEARING

SB110XP0 THIN SECTION BEARING

SB110XP0

Thin Section Bearing

SB110XP0 Thin Section Bearing Dentification

S: Thin Section Bearing

No Code: Material AISI52100_no seals or shields

B:Series standard cross section_open bearing

110:Inch Size ( bearing bore 11.000 inch )

X: Bearing Type_four point contact

P: Separator_standard one piece formed ring with snap over pockets

0: Precision_precision class 1 per ABEC 1F

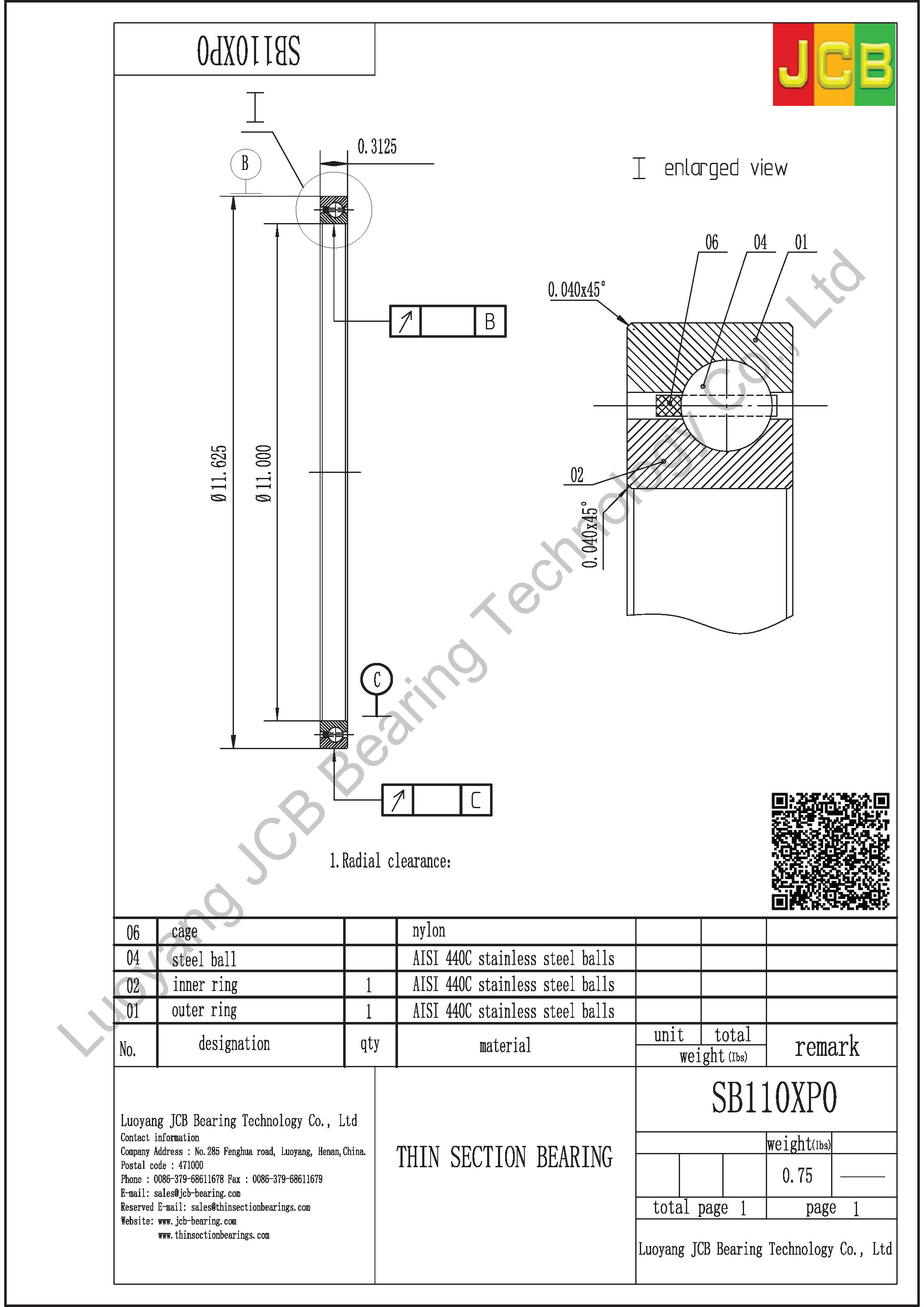

Please download rough drawing of thin section bearing  for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

SB110XP0 of thin section bearing.pdf

Part number comparison

Same As Specification Of SB110XP0 Following Bearing Designation
KB110XP0KB110XP0*JCBCSXB110RB110XP0SB110XP0

SB110XP0 Thin Section Bearing Specifications

Inner Diameter (d)11.000″
Inner Diameter Tolerance-0.0014″- 0″
For Housing ID11.625″
Outer Diameter (D)11.625″
Outer Diameter Tolerance-0.0014″- 0″
Width (B)0.3125″
Width Tolerance+.000 –.005″
Bearing typeFour Point contact ball
Contact Angle
Seal TypeOpen
Cross Section5/16″ x 5/16″
Weight(lbs)0.750
Internal clearance
Operating temperature range
Radial dynamic load capacityrequest by email
Radial static load capacity
Axial dynamic load capacityrequest by email
Axial static load capacity
Bearing material
Ring material
Separator material
Separator type
Maximum rpm
Bearings designation

SB110XP0 Thin Section Bearing Descriptions

1、MATERIAL AISI52100:
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970535A99
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION:0.3125″ × 0.3125″
SB110XP0 thin section bearing

SB110XP0 thin section bearing

3、BEARING INSIDE STRUCTURE :

A : Angular Contact

B : Duplexed Back to Back

C : Radial Contact

F : Duplexed Face to Face

T : Duplexed Tandem

X : 4 Point Contact

4、SEPARATOR OR CAGE :

D : Phenolic , one piece “Snapover” C & X

F : Full complement , no retainer , filling slot required for C & X style

G : Nylon , circular pocket A

H : Phenolic , one piece , circular pocket A

L : Nylon , one piece ,”Snapover” C & X

N : Nylon , segmented “Snapover” C & X

P : Brass ,”Snapover” C & X

R : Brass , one piece , ciecular pocket A

T : Stainless steel , one piece “Snapover” C & X

U : Stainless steel , one piece , circular pocket A

Z : Other

5、ACCURACY CLASS:

ABEC 1F , ABEC 3F , ABEC 5F

6、BEARING INSIDE CLEARANCE:
A0.0000 to 0.0005 clearanceI0.0040 to 0.0050 clearance
B0.0000 to 0.0010 clearanceJ0.0050 to 0.0060 clearance
C0.0005 to 0.0010 clearanceK0.0000 to 0.0005 preload
D0.0005 to 0.0015 clearanceL0.0000 to 0.0010 preload
E0.0010 to 0.0020 clearanceM0.0005 to 0.0010 preload
F0.0015 to 0.0025 clearanceN0.0005 to 0.0015 preload
G0.0020 to 0.0030 clearanceP0.0010 to 0.0020 preload
H0.0030 to 0.0040 clearanceZspecial

Similar Products Of SB110XP0 Thin Section Bearing

Bearing No.Bearing No.Bearing No.
SB110XP0SB110XP3SB110XP5
