SA050XP0
Thin Section Bearing
SA050XP0 Thin Section Bearing Dentification
S:Material AISI52100_no seals or shields
A:Series standard cross section_open bearing
050:Inch Size ( bearing bore 5.000 inch )
X: Bearing Type_four point contact
P: Separator_standard one piece formed ring with snap over pockets
0: Precision_precision class 1 per ABEC 1F

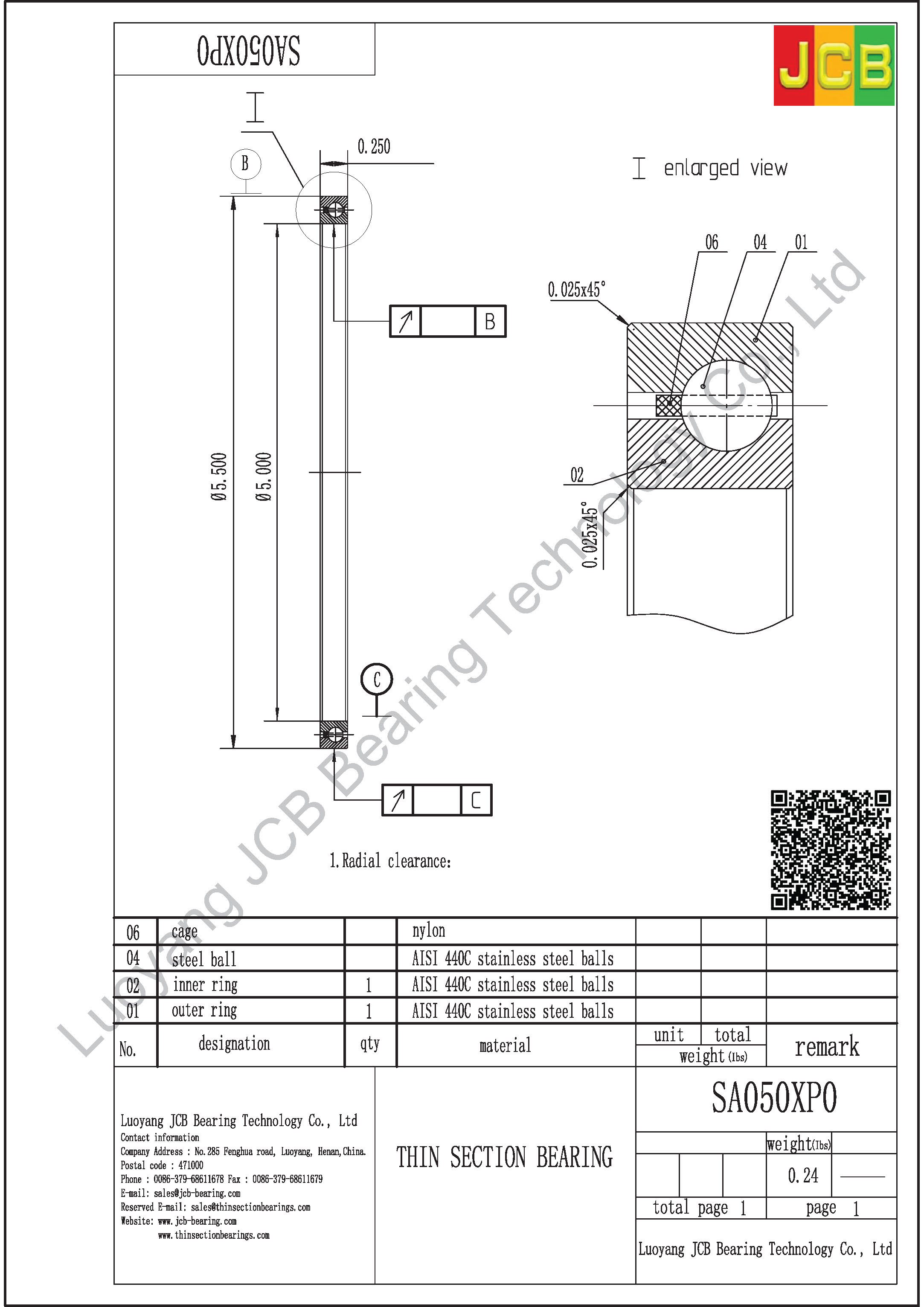

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of SA050XP0 Following Bearing Designation | |||||
KA050XP0 | KA050XP0*JCB | CSXA050 | NBX12706 | RA050XP0 | SA050XP0 |
SA050XP0 Thin Section Bearing Specifications
Inner Diameter (d) | 5.000″ |
Inner Diameter Tolerance | request by email |
For Housing ID | 5.500″ |
Outer Diameter (D) | 5.500″ |
Outer Diameter Tolerance | request by email |
Width (B) | 0.250″ |
Width Tolerance | request by email |
Bearing type | Four Point ball |
Contact Angle | request by email |
Seal Type | Open |
Cross Section | request by email |
Weight(lbs) | 0.24 |
Internal clearance | C0 |
Operating temperature range | -65 to +250 °F |
Radial dynamic load capacity | 859 lbf |
Radial static load capacity | 1590 lbf |
Axial dynamic load capacity | 1680 lbf |
Axial static load capacity | 3980 lbf |
Bearing material | AISI 52100 |
Ring material | AISI 52100 |
Separator material | Brass/Composite |
Separator type | Circular Pocket |
Maximum rpm | 2290 rpm |
Bearings designation | Request by email |
SA050XP0 Thin Section Bearing Descriptions
1、MATERIAL AISI52100:
Country | Standard | Steel Grade |
AMERICA | AISI ASTM/A295 | 52100 |
GERMANY | DIN 17030 | 100Cr6 |
JAPAN | JIS G4805 | SUJ2 |
ENGLAND | BS 970 | 535A99 |
CHINA | GB/T 18254 | GCr15 |
FRANCE | NF A35-565 | 100C6 |
SWEDEN | SWEDEN | SKF3 |
KOREA | KS D3525 | STB2 |
RUSSIAN | TOCT 801 | IIIX15 |
2、SERIES STANDARD CROSS SECTION:0.250″ × 0.250″
3、BEARING INSIDE STRUCTURE :
A : Angular Contact
B : Duplexed Back to Back
C : Radial Contact
F : Duplexed Face to Face
T : Duplexed Tandem
X : 4 Point Contact
4、SEPARATOR OR CAGE :
D : Phenolic , one piece “Snapover” C & X
F : Full complement , no retainer , filling slot required for C & X style
G : Nylon , circular pocket A
H : Phenolic , one piece , circular pocket A
L : Nylon , one piece ,”Snapover” C & X
N : Nylon , segmented “Snapover” C & X
P : Brass ,”Snapover” C & X
R : Brass , one piece , ciecular pocket A
T : Stainless steel , one piece “Snapover” C & X
U : Stainless steel , one piece , circular pocket A
Z : Other
5、ACCURACY CLASS:
ABEC 1F , ABEC 3F , ABEC 5F
6、BEARING INSIDE CLEARANCE:
A | 0.0000 to 0.0005 clearance | I | 0.0040 to 0.0050 clearance |
B | 0.0000 to 0.0010 clearance | J | 0.0050 to 0.0060 clearance |
C | 0.0005 to 0.0010 clearance | K | 0.0000 to 0.0005 preload |
D | 0.0005 to 0.0015 clearance | L | 0.0000 to 0.0010 preload |
E | 0.0010 to 0.0020 clearance | M | 0.0005 to 0.0010 preload |
F | 0.0015 to 0.0025 clearance | N | 0.0005 to 0.0015 preload |
G | 0.0020 to 0.0030 clearance | P | 0.0010 to 0.0020 preload |
H | 0.0030 to 0.0040 clearance | Z | special |
Similar Products Of SA050XP0 Thin Section Bearing
Bearing No. | Bearing No. | Bearing No. |
SA050XP0 | SA050XP3 | SA050XP5 |
