ND210CP0
Thin Section Bearing
ND210CP0 Thin Section Bearing Dentification
N: AISI 52100 Steel, AISI 440C stainless steel balls
Endurakote plating and No seals
D:Series standard cross section_open bearing
210:Inch Size ( bearing bore 20.9998 inch )
C: Bearing Type_Radial contact
P: Separator_standard one piece formed ring with “snap-over” pockets
0: Precision_precision Class 1 per ABEC 1F

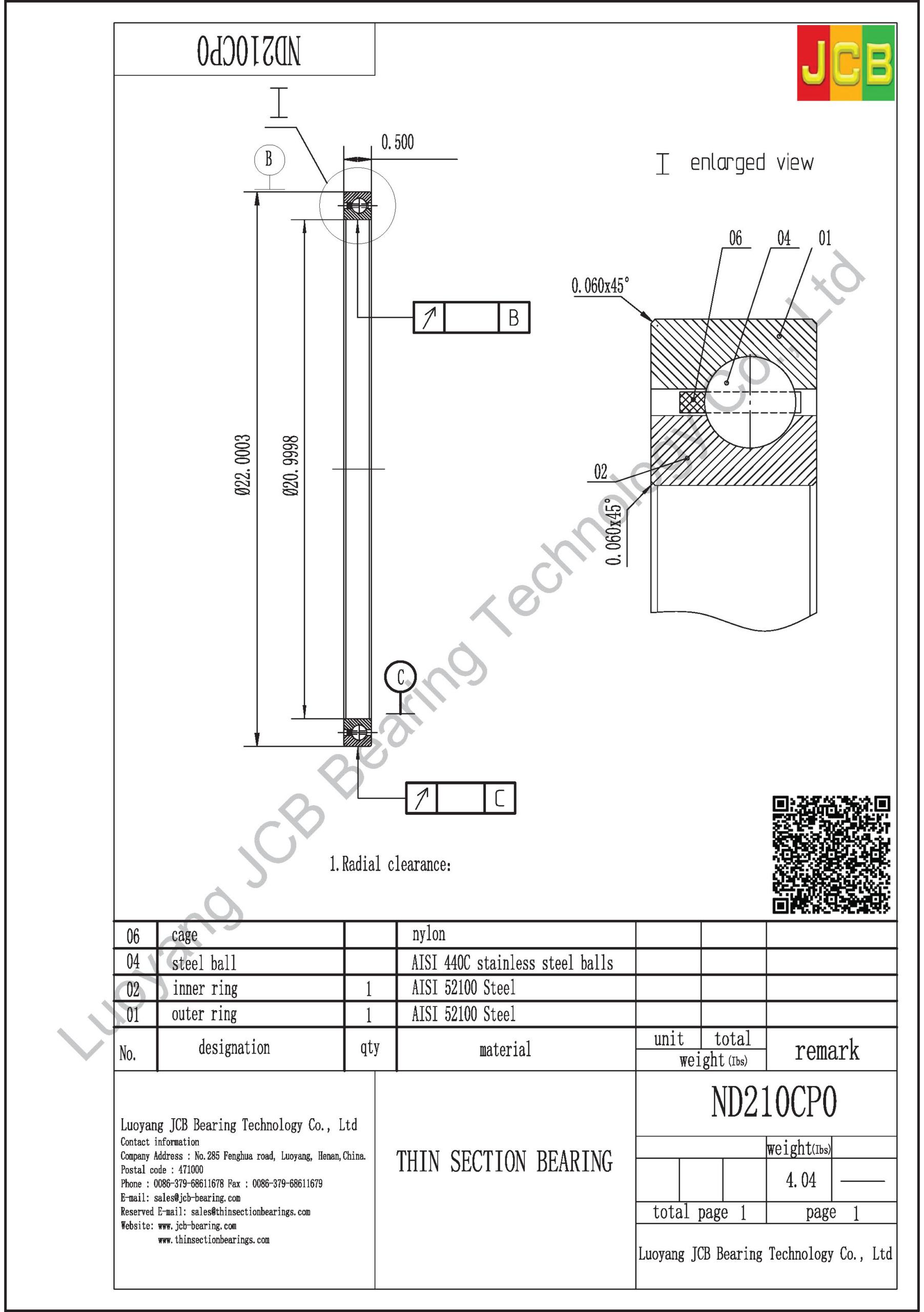

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of ND210CP0 Following Bearing Designation | |
ND210CP0 | ND210CP0*JCB |
ND210CP0 Thin Section Bearing Specifications
For Shaft Diameter | 20.9998″ |
Inner Diameter (d) | 20.9998″ |
Inner Diameter Tolerance | -0.0020″– 0″ |
For Housing ID | 22.0003″ |
Outer Diameter (D) | 22.0003″ |
Outer Diameter Tolerance | -0.0020″– 0″ |
Width (B) | 0.5000″ |
Width Tolerance | +.000 –.010″ |
Bearing type | Radial contact ball |
Seal Type | Open |
Cross Section | 1/2″ x 1/2″ |
Weight(lbs) | 4.040 |
Internal clearance | – |
Operating temperature range | – |
Radial dynamic load capacity | request by email |
Radial static load capacity | – |
Axial dynamic load capacity | request by email |
Axial static load capacity | – |
Bearing material | AISI 52100 |
Ring material | AISI 52100 |
Separator material | – |
Separator type | – |
Maximum rpm | – |
Bearings designation | – |
Thin Section Bearing Descriptions
1、BEARING MATERIAL AISI52100:
Country | Standard | Steel Grade |
AMERICA | AISI ASTM/A295 | 52100 |
GERMANY | DIN 17030 | 100Cr6 |
JAPAN | JIS G4805 | SUJ2 |
ENGLAND | BS 970 | 535A99 |
CHINA | GB/T 18254 | GCr15 |
FRANCE | NF A35-565 | 100C6 |
SWEDEN | SWEDEN | SKF3 |
KOREA | KS D3525 | STB2 |
RUSSIAN | TOCT 801 | IIIX15 |
BALL MATERIAL AISI440C:
Country | Standard | Steel Grade |
AMERICA | A276 | 440C |
GERMANY | DIN17400 | X105CRMO17 |
JAPAN | JIS G4303 | SUS440C |
CHINA | GB 1220 | 11Cr17/9Cr18 |
FRANCE | NFA35-578 | Z100CD17 |
RUSSIAN | GOST 5632 | 95X18 |
2、SERIES STANDARD CROSS SSCTION:0.500″ × 0.500″
3、BEARING INSIDE STRUCTURE :
A : Angular contact single bearing (not ground for universal duplexing)
B : Angular contact pair—duplexed back to back
C : Radial contact
F : Angular contact pair—duplexed face to face
T : Angular contact pair—duplexed tandem
U : Angular contact single bearing—ground for universal duplexing
X : Four-point contact
Z : Other
4、SEPARATOR OR CAGE :
C : Non-metallic composite, segmental, “snap-over” type – C, X
D : Phenolic laminate, one-piece ring, “snap-over” type – C, X
E : Brass, segmental “snap-over” type – C, X
L : Nylon one-piece molded ring with “snap-over” pockets – C, X
N : Nylon molded strip with “snap-over” pockets – C, X
P : Standard one-piece formed ring with “snap-over” pockets- C, X
T : Stainless steel, formed ring “snap-over” type – C, X
V : Brass, formed ring, “snap-over” pockets – C, X
X : PEEK, one-piece molded ring with “snap-over” pockets – C, X
G : Nylon one-piece molded ring with circular pockets – A
H : Phenolic laminate one-piece machined ring with circular pockets – A
J : Nylon molded strip with circular pockets – A
K : Phenolic laminate, riveted two-piece ring type – A, C, X
Q : PEEK, one-piece molded ring with circular pockets – A
R : Standard one-piece formed ring with circular pockets – A
U : Stainless steel, formed ring circular pockets type – A
Y : Brass, formed ring, circular pockets type – A
M : Formed wire strip or segmental cage, “snap-over” pockets – A, C, X
W : Formed wire strip or segmental cage, “snap-over” pockets – C, X
F : Full complement bearing – A, C, X
S : Helical coil spring – C, X
Z : Other (toroid ball spacers, spacer slugs, spacer ball or others available) – A, C, X
5、ACCURACY CLASS:
ABEC 1F , ABEC 3F , ABEC 5F , ABEC 7F
6、BEARING INSIDE CLEARANCE:
A | 0.0000″to 0.0005″Clearance | K | 0.0000″to 0.0005″Preload |
B | 0.0000″to 0.0010″Clearance | L | 0.0000″to 0.0010″Preload |
C | 0.0005″to 0.0010″Clearance | M | 0.0005″to 0.0010″Preload |
D | 0.0005″to 0.0015″Clearance | N | 0.0005″to 0.0015″Preload |
E | 0.0010″to 0.0020″Clearance | P | 0.0010″to 0.0020″Preload |
F | 0.0015″to 0.0025″Clearance | Q | 0.0010″to 0.0015″Preload |
G | 0.0020″to 0.0030″Clearance | R | 0.0015″to 0.0025″Preload |
H | 0.0030″to 0.0040″Clearance | S | 0.0020″to 0.0030″Preload |
I | 0.0040″to 0.0050″Clearance | Z | Other clearance or preload not specified above |
J | 0.0050″to 0.0060″Clearance |
Similar Products Of ND210CP0 Thin Section Bearing
Bearing No. | Bearing No. | Bearing No. | Bearing No. | Bearing No. | Bearing No. |
ND210CP0 | ND210CP1 | ND210CP2 | ND210CP3 | ND210CP4 | ND210CP6 |
