KAYDON THIN SECTION BEARING Open Endurakote-Plated Endura-Slim® Bearing Type A-Angular Contact NC Series

NC040AR0

Dentification of thin section bearing NC040AR0

N: AISI 52100 Steel, AISI 440C stainless steel balls
Endurakote plating and No seals

C：Series standard cross section_open bearings

040：Inch Size ( bearing bore 3.9998 inch )

A: Bearing Type_angular contact single bearing

R: Separator_standard one piece formed ring with circular pockets

0: Precision_kaydon precision Class 1 per ABEC 1F

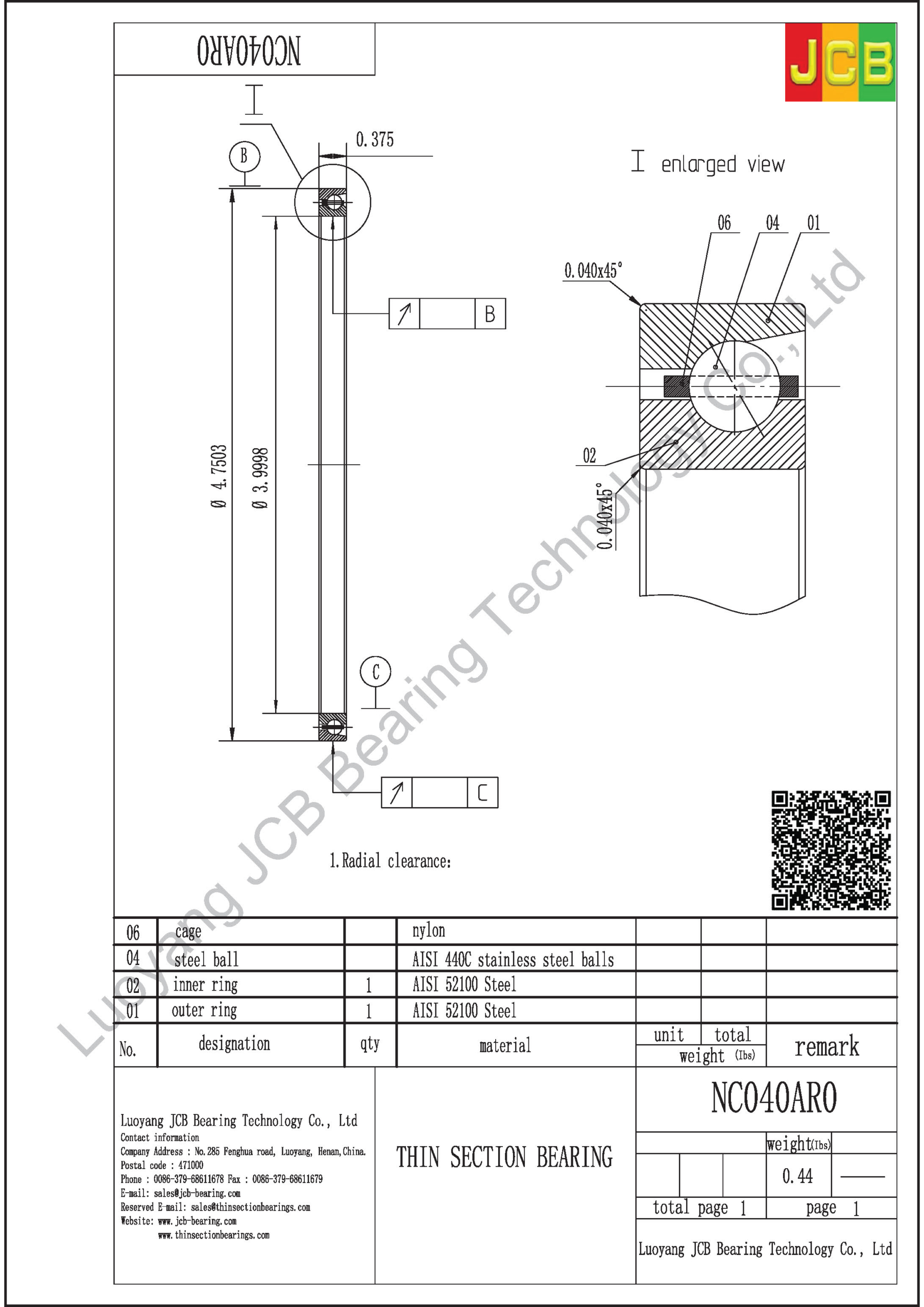

Please download rough drawing of thin section bearing for reference，formal drawing of thin section bearing NC040AR0 will be submitted after contact with sales@jcb-bearing.com or sales@thinsectionbearings.com

NA020AR0 of thin section bearing.pdf

DOWNLOAD

Specifications

For Shaft Diameter3.9998″
Inner Diameter (d)3.9998″
Inner Diameter Tolerancerequest by email
For Housing ID4.7503″
Outer Diameter (D)4.7503″
Outer Diameter Tolerancerequest by email
Width (B)0.375″
Width Tolerancerequest by email
Bearing typeAngular Contact ball
Seal TypeOpen
Cross Sectionrequest by email
Weight(lbs)0.44
Internal clearancerequest by email
Operating temperature rangerequest by email
Radial dynamic load capacityrequest by email
Radial static load capacityrequest by email
Axial dynamic load capacityrequest by email
Axial static load capacityrequest by email
Bearing materialrequest by email
Ring materialrequest by email
Separator materialrequest by email
Separator typerequest by email
Maximum rpmrequest by email
Bearings designationrequest by email
