NBX12006 thin section bearing

NBX12006 thin section bearing

NBX12006

Thin Section Bearing

NBX12006 thin section bearing Dentification

N: Series

B: Ball bearing (thin section bearing)

X: Bearing Type_four point contact

Bore: 120.650 (mm)

Width: 6.350 (mm)

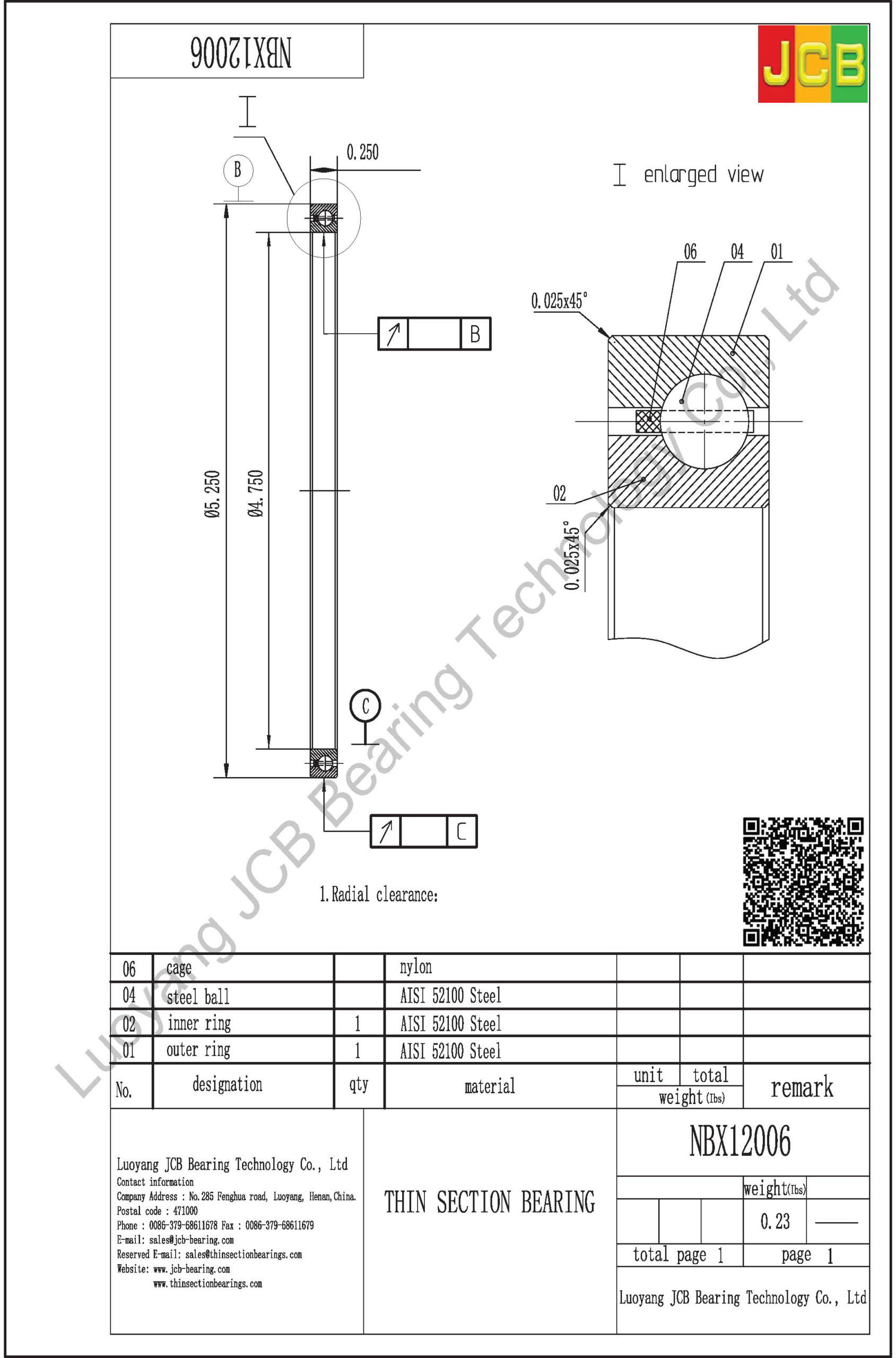

Please download rough drawing of thin section bearing  for reference,formal drawing of thin section bearing NBX12006 will be submitted after contact with sales@jcb-bearing.com

NBX12006 of thin section bearing.pdf

Part number comparison

Same As Specification Of NBX12006 Following Bearing Designation
KA047XP0KA047XP0*JCBCSXA047NBX12006RA047XP0SA047XP0

NBX12006 Thin Section Bearing Specifications

Inner Diameter (d)4.750″
Inner Diameter Tolerance-0.0010″ – 0″
For Housing ID5.250″
Outer Diameter (D)5.250″
Outer Diameter Tolerance-0.0008″ – 0″
Width (B)0.2500″
Width Tolerance+.000 –.005″
Bearing typeFour Point contact ball
Contact Angle
Seal TypeOpen
Cross Section1/4″ x 1/4″
Weight(lbs)0.230
Internal clearanceC0
Operating temperature range-65 to +250 °F
Radial dynamic load capacity834 lbf
Radial static load capacity1520 lbf
Axial dynamic load capacity1650 lbf
Axial static load capacity3790 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass/Composite
Separator typeCircular Pocket
Maximum rpm2400 rpm
Bearings designation

NBX12006 Thin Section Bearing Descriptions

1、BEARING INSIDE STRUCTURE :

NBA : Radial Type

NBC : Angular Type

NBX : Four-Point Contact Type

2、Bore Diameter:25.4-127.0 mm
NBX12006 thin section bearing

NBX12006 thin section bearing

3、SEPARATOR OR CAGE :

No Symbol : Pressed Brass Cage

T : Synthetic Resin Cage

4、SEAL SYMBOL :

No Symbol : Open Type

D : Sealed On One Side

DD : Sealed On Both Sides

5、INTERNAL CLEARANCE :
Nominal Bearing Bore Diameter(d:mm)Single Plane Mean Bore Diameter Deviation(⊿dmp:μm)Single Plane Mean Outside Diameter Deviation(⊿Dmp:μm)Deviation of a Single Inner Ring Width(⊿Bs:μm)Radial Internal Clearance(μm)
overinclhighlowhighlowhighlowminmax
25.400 0-100-130-1272538
25.400 38.100 0-130-130-1273043
38.100 63.500 0-150-130-1273056
63.500 76.200 0-150-150-1273056
76.200 101.600 0-200-150-1274166
101.600 114.300 0-200-200-1274166
114.300 127.000 0-250-200-1275176
127.000 165.100 0-250-250-1275176
165.100 177.800 0-250-300-1275176
177.800 228.600 0-300-300-1276186
226.600 304.800 0-360-360-1277197
304.800 355.600 0-360-360-2547197
355.600 457.200 0-410-410-25481107
457.200 762.000 0-460-460-25491117
762.000 1016.000 0-510-510-254102127
5、ACCURACY CLASS:

PK1 , PK3 , PK4

Similar Products Of NBX12006 Thin Section Bearing

Bearing No.Bearing No.Bearing No.
NBX 12006NBX 12006 PK3NBX 12006 PK4
NBX 12006 DNBX 12006 D PK3NBX 12006 D PK4
NBX 12006 DDNBX 12006 DD PK3NBX 12006 DD PK4
NBX 12006 TNBX 12006 T PK3NBX 12006 T PK4
NBX 12006 T DNBX 12006 T D PK3NBX 12006 T D PK4
NBX 12006 T DDNBX 12006 T DD PK3NBX 12006 T DD PK4
