KAA17AG0 THIN SECTION BEARING

KAA17AG0

Thin Section Bearing

KAA17AG0 Thin Section Bearing Dentification

K:Material AISI52100_no seals or shields

AA:Series standard cross section_open bearing

17:Inch Size ( bearing bore 1.750 inch )

A: Bearing Type_angular contact single row bearing

G: Separator_nylon one piece molded ring with circular pockets

0: Precision_precision class 1 per ABEC 1F

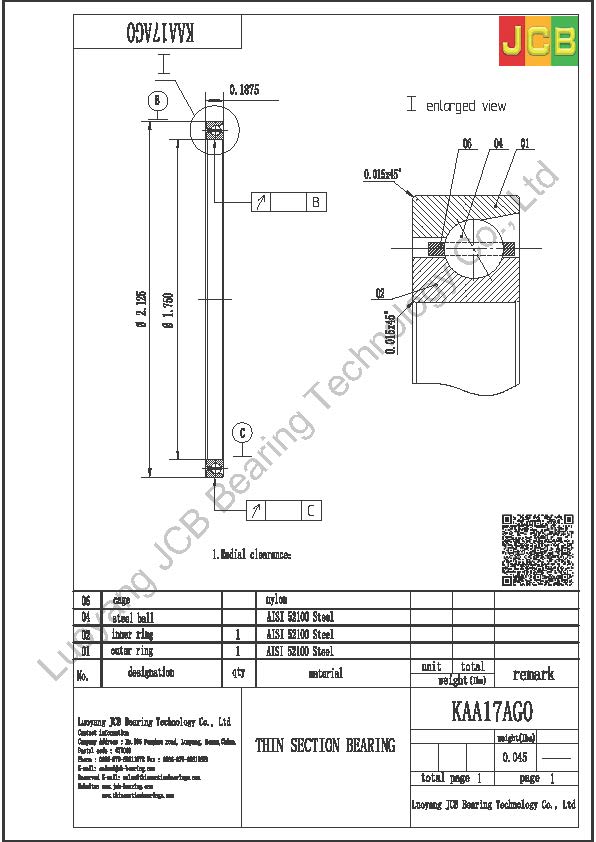

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

KAA17AG0 of thin section bearing.pdf

Part number comparison

 Same As Specification Of KAA17AG0 Following Bearing Designation
KAA17AG0RAA17AG0CSEAA017FPAB112L15PA112 KYS017SAA17AG0KAA17AG0*JCB

KAA17AG0 Thin Section Bearing Specifications

Inner Diameter (d)1.750″
Inner Diameter Tolerancerequest by email
For Housing ID2.125″
Outer Diameter (D)2.125″
Outer Diameter Tolerancerequest by email
Width (B)0.1875″
Width Tolerancerequest by email
Bearing typeAngular contact ball
Contact Angle30°
Seal TypeOpen
Cross Sectionrequest by email
Weight(lbs)0.045
Internal clearanceC0
Operating temperature range-65 to 250 °F
Radial dynamic load capacity1100 lbf
Radial static load capacity1380 lbf
Axial dynamic load capacity1100 lbf
Axial static load capacity1160 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialGFR Nylon
Separator typeCircular Pocket
Maximum rpm11850 rpm
Bearings designationRequest by email

Thin Section Bearing Descriptions

1、Material AISI52100:
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970535A99
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、Series standard cross section: 0.1875″ × 0.1875″
KAA17AG0 thin section bearing

KAA17AG0 thin section bearing

3、BEARING INSIDE STRUCTURE :

A : Angular contact single bearing (not ground for universal duplexing)

B : Angular contact pair—duplexed back to back

C : Radial contact

F : Angular contact pair—duplexed face to face

T : Angular contact pair—duplexed tandem

U : Angular contact single bearing—ground for universal duplexing

X : Four-point contact

Z : Other

4、SEPARATOR OR CAGE :

C : Non-metallic composite, segmental, “snap-over” type – C, X

D : Phenolic laminate, one-piece ring, “snap-over” type – C, X

E : Brass, segmental “snap-over” type – C, X

L : Nylon one-piece molded ring with “snap-over” pockets – C, X

N : Nylon molded strip with “snap-over” pockets – C, X

P : Standard one-piece formed ring with “snap-over” pockets- C, X

T : Stainless steel, formed ring “snap-over” type – C, X

V : Brass, formed ring, “snap-over” pockets – C, X

X : PEEK, one-piece molded ring with “snap-over” pockets – C, X

G : Nylon one-piece molded ring with circular pockets – A

H : Phenolic laminate one-piece machined ring with circular pockets – A

J : Nylon molded strip with circular pockets – A

K : Phenolic laminate, riveted two-piece ring type – A, C, X

Q : PEEK, one-piece molded ring with circular pockets – A

R : Standard one-piece formed ring with circular pockets – A

U : Stainless steel, formed ring circular pockets type – A

Y : Brass, formed ring, circular pockets type – A

M : Formed wire strip or segmental cage, “snap-over” pockets – A, C, X

W : Formed wire strip or segmental cage, “snap-over” pockets – C, X

F : Full complement bearing – A, C, X

S : Helical coil spring – C, X

Z : Other (toroid ball spacers, spacer slugs, spacer ball or others available) – A, C, X

5、ACCURACY CLASS:

ABEC 1F , ABEC 3F , ABEC 5F , ABEC 7F

6、BEARING INSIDE CLEARANCE:
A0.0000″to 0.0005″ClearanceK0.0000″to 0.0005″Preload
B0.0000″to 0.0010″ClearanceL0.0000″to 0.0010″Preload
C0.0005″to 0.0010″ClearanceM0.0005″to 0.0010″Preload
D0.0005″to 0.0015″ClearanceN0.0005″to 0.0015″Preload
E0.0010″to 0.0020″ClearanceP0.0010″to 0.0020″Preload
F0.0015″to 0.0025″ClearanceQ0.0010″to 0.0015″Preload
G0.0020″to 0.0030″ClearanceR0.0015″to 0.0025″Preload
H0.0030″to 0.0040″ClearanceS0.0020″to 0.0030″Preload
I0.0040″to 0.0050″ClearanceZOther clearance or preload not specified above
J0.0050″to 0.0060″Clearance
