K19013AR0 THIN SECTION BEARING

K19013AR0

Thin Section Bearing

K19013AR0 Thin Section Bearing Dentification

K:Material AISI 52100 Steel_no seals or shields

190:Bore (190mm)

13:Width (13mm)

A: Bearing Type_angular contact single bearing

R: Separator_standard one piece formed ring with circular pockets

0: Precision_precision class 1 per ABEC 1F

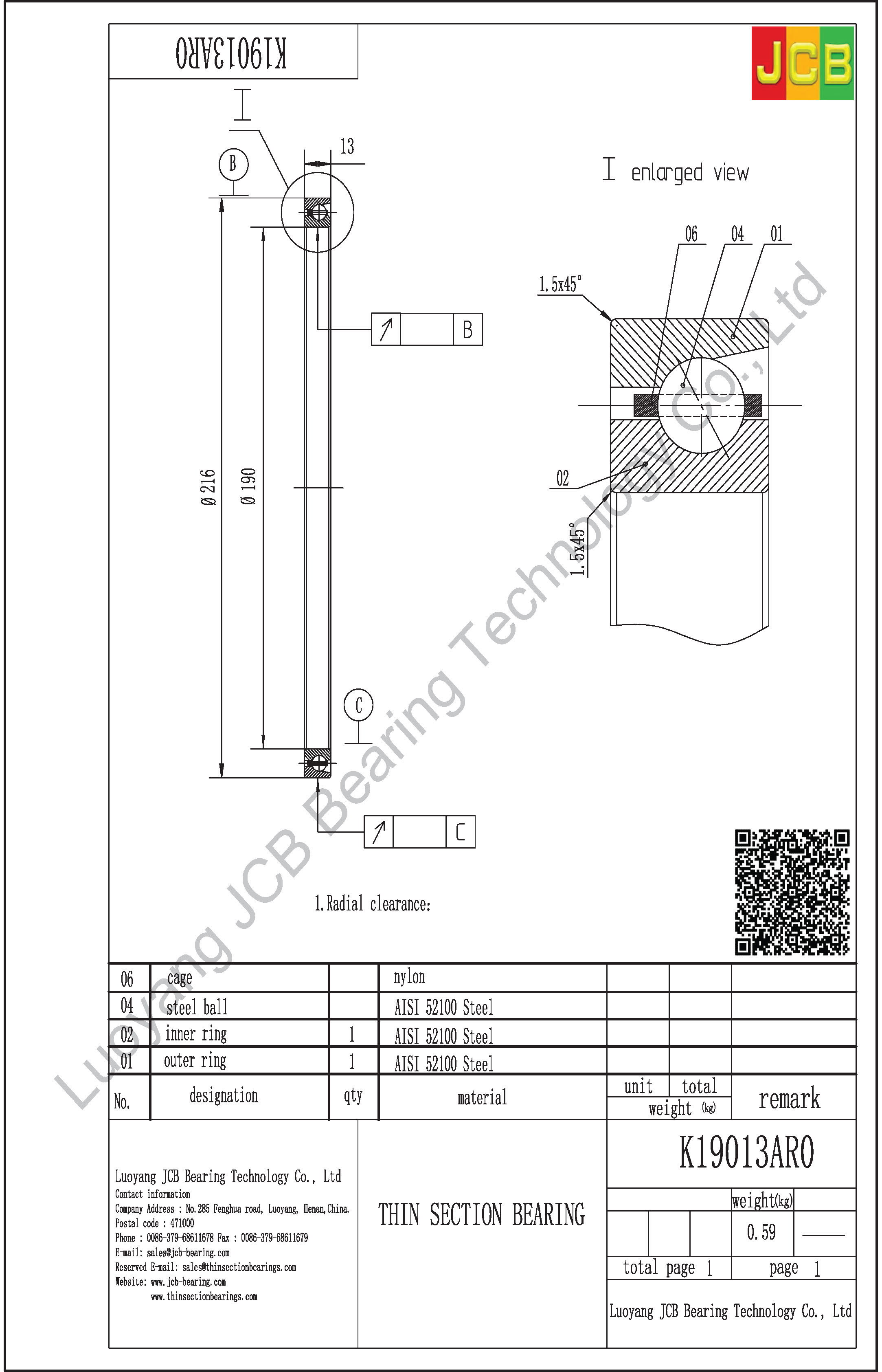

Please download rough drawing of thin section bearing  for reference,formal drawing of thin section bearing K19013AR0 will be submitted after contact with sales@jcb-bearing.com

K19013AR0 of thin section bearing.pdf

K19013AR0 Thin Section Bearing Specifications

For Shaft Diameter190 mm
Inner Diameter (d)190 mm
Inner Diameter Tolerance-0.025mm to 0
For Housing ID216 mm
Outer Diameter (D)216 mm
Outer Diameter Tolerance-0.03mm to 0
Width (B)13 mm
Width Tolerance+.000 –.254mm
Bearing typeAngular contact ball
Contact Angle30°
Seal TypeOpen
Cross Section13 mm
Internal clearance
Operating temperature range
Radial dynamic load capacityrequest by email
Radial static load capacity
Axial dynamic load capacityrequest by email
Axial static load capacity
Bearing materialAISI 440C
Ring materialAISI 440C
Separator material
Separator type
Maximum rpm
Weight(lbs)0.59

Thin Section Bearing Descriptions

1、BEARING MATERIAL AISI52100:
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SSCTION:13 mm × 13 mm :
K19013AR0 thin section bearing

K19013AR0 thin section bearing

3、BEARING INSIDE STRUCTURE :

A : Angular contact single bearing

C : Deep groove ball bearing

X : Four-point contact

4、SEPARATOR OR CAGE :

P : Standard one-piece formed ring with “snap-over” pockets- C, X

R : Standard one-piece formed ring with circular pockets – A

5、ACCURACY CLASS:

ABEC 1F , ABEC 3F , ABEC 5F , ABEC 7F

6、BEARING INSIDE CLEARANCE:
A0.0000″to 0.0005″ClearanceK0.0000″to 0.0005″Preload
ZOther clearance or preload not specified aboveL0.0000″to 0.0010″Preload

Similar Products Of K19013AR0 Thin Section Bearing

Bearing No.Bearing No.Bearing No.Bearing No.Bearing No.Bearing No.
K19013AR0K19013AR1K19013AR2K19013AR3K19013AR4K19013AR6
