JSHA10CL0 Thin Section Bearing Dentification

J: Seals_Buna N Rubber Metal Backed ( width dim. may change ) Shields & Teflon Seals

S: Thin Section Bearing

No Code: Material AISI 52100 Steel

HA: Series standard cross section_sealed bearing

10:Inch Size ( bearing bore 1.000 inch )

C: Bearing Type_radial contact

L: Separator_nylon one piece molded ring with snap over pockets

0: Precision_precision class 1 per ABEC 1F

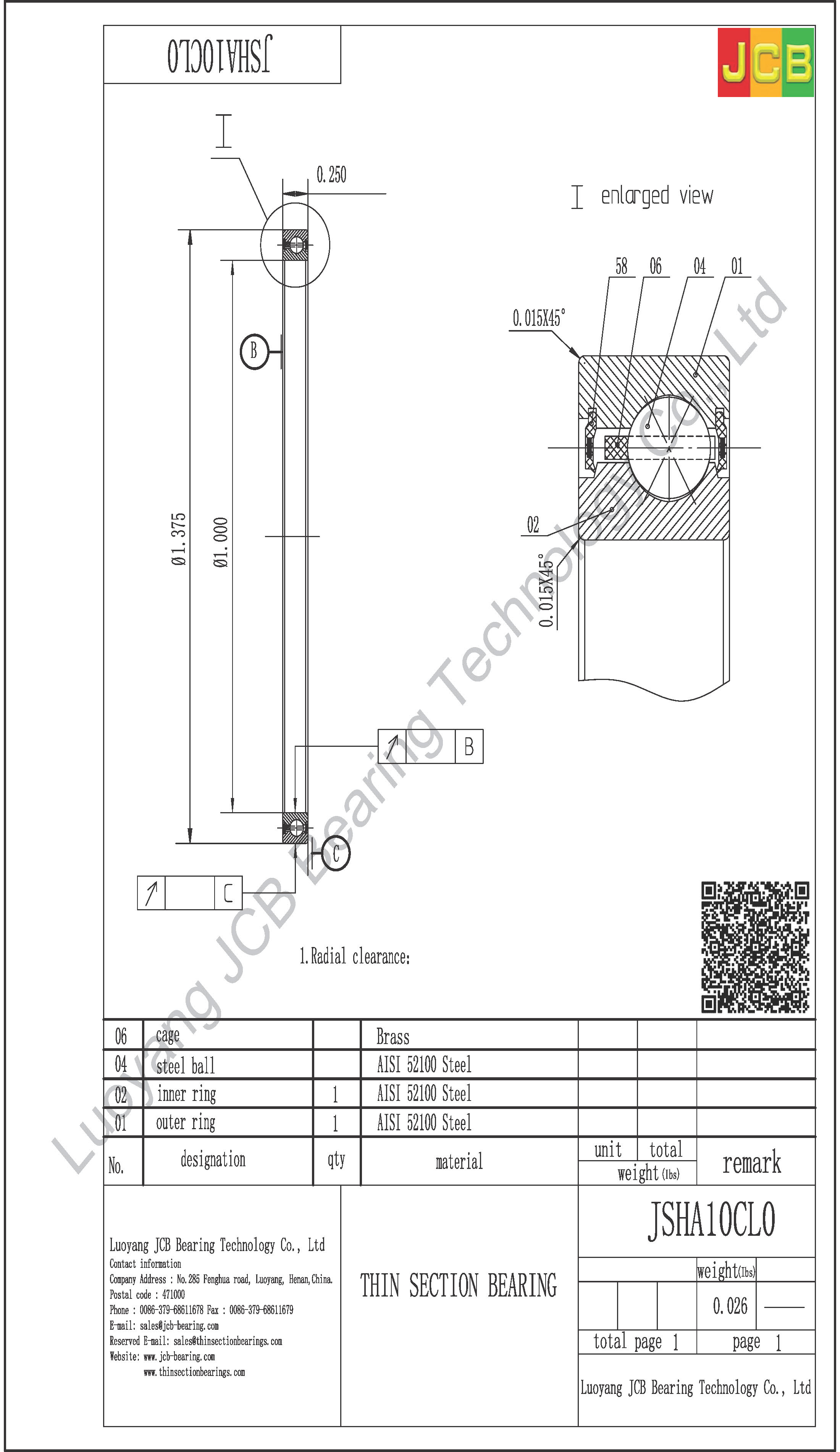

Please download rough drawing of thin section bearing  for reference,formal drawing of thin section bearing JSHA10CL0 will be submitted after contact with sales@jcb-bearing.com

JSHA10CL0 of thin section bearing.pdf

Part number comparison

Same As Specification Of JSHA10CL0 Following Bearing Designation
JHA10CL0JHA10CL0*JCBRJHA10CL0JSHA10CL0

JSHA10CL0 Thin Section Bearing Specifications

Inner Diameter (d)1.000″
Inner Diameter Tolerance-0.0004″– 0″
For Housing ID1.375″
Outer Diameter (D)1.375″
Outer Diameter Tolerance-0.0005″– 0″
Width (B)0.2500″
Width Tolerance+.000 –.005″
Bearing typeRadial contact ball
Contact Angle
Seal TypeSealed
Cross Section3/16″ x 1/4″
Weight(lbs)0.035
Internal clearance
Operating temperature range
Radial dynamic load capacityrequest by email
Radial static load capacity
Axial dynamic load capacityrequest by email
Axial static load capacity
Bearing material
Ring material
Separator material
Separator type
Maximum rpm
Bearings designation

JSHA10CL0 Thin Section Bearing Descriptions

1、MATERIAL AISI52100:
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970535A99
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION:0.250″ × 0.1875″
JSHA10CL0 thin section bearing

JSHA10CL0 thin section bearing

3、BEARING INSIDE STRUCTURE :

A : Angular Contact

B : Duplexed Back to Back

C : Radial Contact

F : Duplexed Face to Face

T : Duplexed Tandem

X : 4 Point Contact

4、SEPARATOR OR CAGE :

D : Phenolic , one piece “Snapover” C & X

F : Full complement , no retainer , filling slot required for C & X style

G : Nylon , circular pocket A

H : Phenolic , one piece , circular pocket A

L : Nylon , one piece ,”Snapover” C & X

N : Nylon , segmented “Snapover” C & X

P : Brass ,”Snapover” C & X

R : Brass , one piece , ciecular pocket A

T : Stainless steel , one piece “Snapover” C & X

U : Stainless steel , one piece , circular pocket A

Z : Other

5、ACCURACY CLASS:

ABEC 1F , ABEC 3F , ABEC 5F

6、BEARING INSIDE CLEARANCE:
A0.0000 to 0.0005 clearanceI0.0040 to 0.0050 clearance
B0.0000 to 0.0010 clearanceJ0.0050 to 0.0060 clearance
C0.0005 to 0.0010 clearanceK0.0000 to 0.0005 preload
D0.0005 to 0.0015 clearanceL0.0000 to 0.0010 preload
E0.0010 to 0.0020 clearanceM0.0005 to 0.0010 preload
F0.0015 to 0.0025 clearanceN0.0005 to 0.0015 preload
G0.0020 to 0.0030 clearanceP0.0010 to 0.0020 preload
H0.0030 to 0.0040 clearanceZspecial
