CSXG075 Thin Section Bearing Dentification

CS: Thin section series

X : contact type_four point contact

G: cross section height 1”

075: inch size ( bearing bore 7.5 inch )

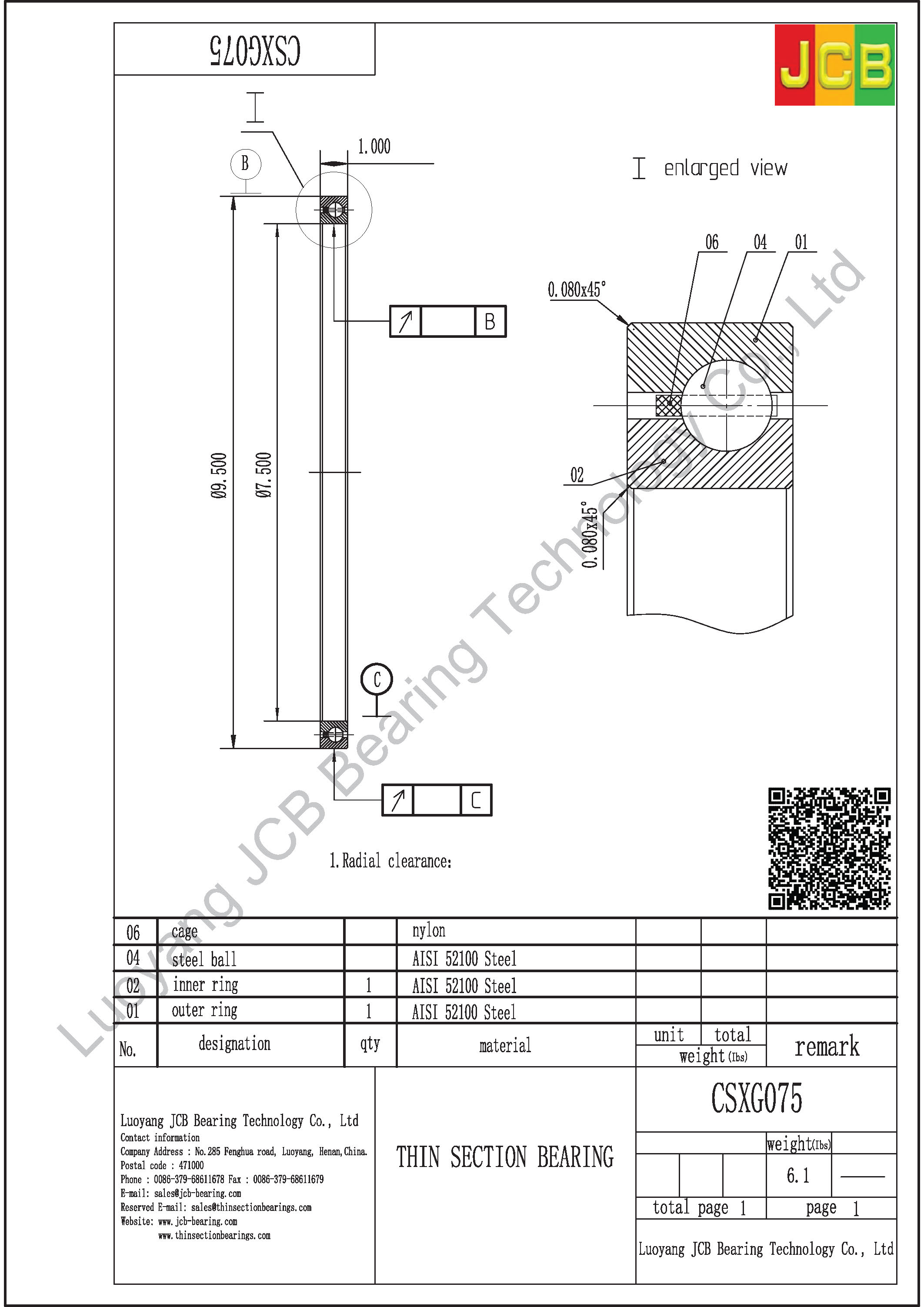

Please download rough drawing of thin section bearing  for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

CSXG075 of thin section bearing.pdf

Part number comparison

Same As Specification Of CSXG075 Following Bearing Designation
KG075XP0KG075XP0*JCBCSXG075RG075XP0SG075XP0

CSXG075 Thin Section Bearing Specifications

Inner Diameter (d)7.500″
Inner Diameter Tolerance-0.0012″– 0″
For Housing ID9.500″
Outer Diameter (D)9.500″
Outer Diameter Tolerance-0.0012″– 0″
Width (B)1″
Width Tolerance+.000 –.005″
Bearing typeFour Point contact ball
Contact Angle
Seal TypeOpen
Cross Section1″ x 1″
Weight(lbs)6.100
Internal clearanceC0
Operating temperature range-65 to +250 °F
Radial dynamic load capacity1131 lbf
Radial static load capacity2500 lbf
Axial dynamic load capacity1970 lbf
Axial static load capacity6260 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass/Composite
Separator typeCircular Pocket
Maximum rpm1410 rpm
Bearings designation

Thin Section Bearing Descriptions

1、MATERIAL AISI52100 :
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION : 1.000 × 1.000 in
CSXG040 thin section bearing

CSXG075 thin section bearing

3、CONTACT TYPE :

C : Radial Contact

E : Angular Contact

X : Four Point Contact

4、CROSS SECTION HEIGHT

AA : 3/16″

A : 1/4″

B : 5/16″

C : 3/8″

D : 1/2″

F : 3/4″

G : 1″

U : Non Square Section For Seals

5、SUFFIX

2RS : Increased Width With Two Seals

TV : Plastic Cage made from PA66

YH : brass sheet metal
