CSXF200

Thin Section Bearing

CSXF200 Thin Section Bearing Dentification

CS: Thin section series

X : contact type_four point contact

F: cross section height 3/4”

200: inch size ( bearing bore 20 inch )

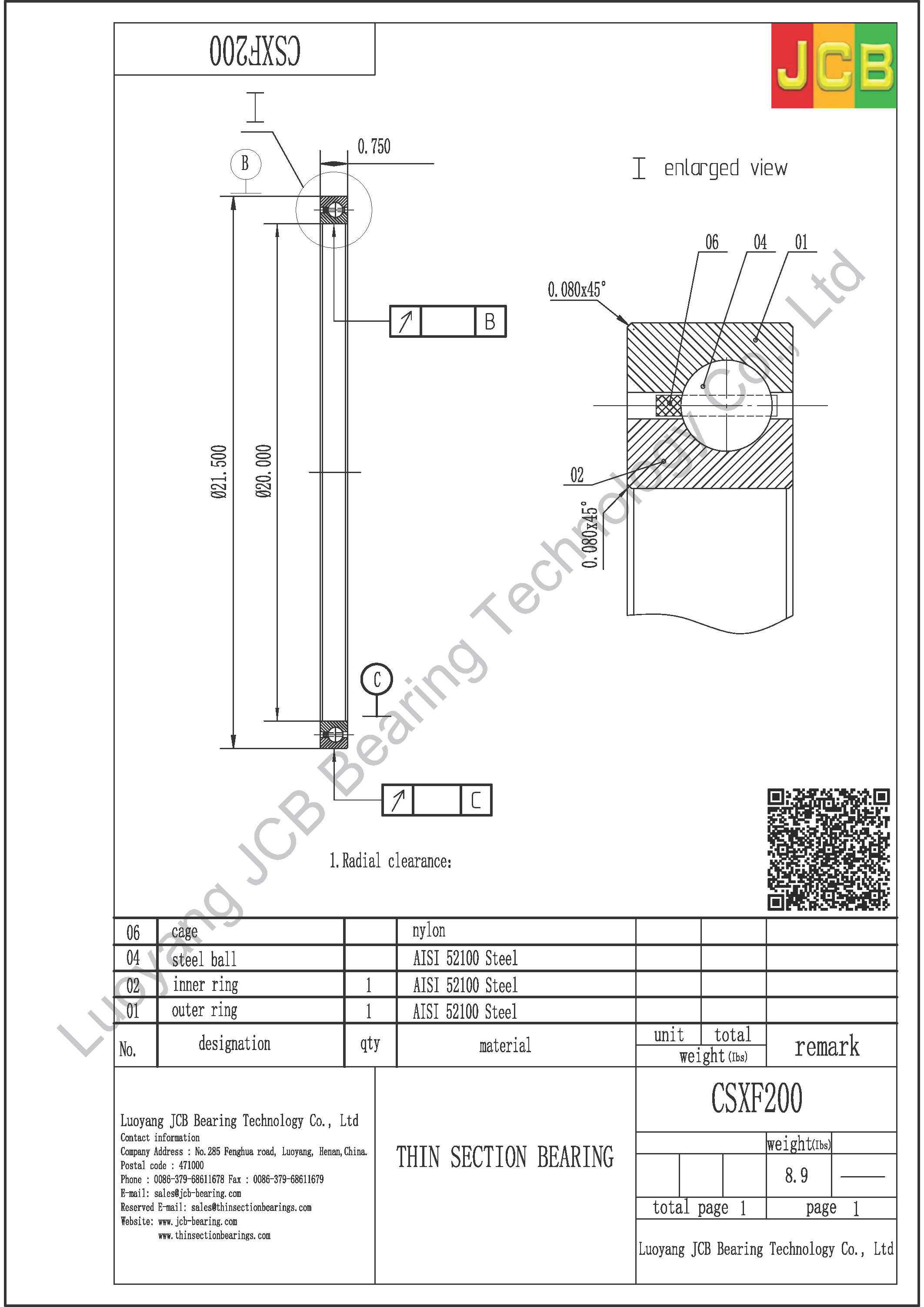

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

CSXF200 of thin section bearing.pdf

Part number comparison

Same As Specification Of CSXF200 Following Bearing Designation
KF200XP0KF200XP0*JCBCSXF200RF200XP0SF200XP0

CSXF200 Thin Section Bearing Specifications

Inner Diameter (d)20.000″
Inner Diameter Tolerance-0.0018″– 0″
For Housing ID21.500″
Outer Diameter (D)21.500″
Outer Diameter Tolerance-0.0018″– 0″
Width (B)0.7500″
Width Tolerance+.000 –.010″
Bearing typeFour Point contact ball
Contact Angle
Seal TypeOpen
Cross Section3/4″ x 3/4″
Weight(lbs)8.900
Internal clearance
Operating temperature range
Radial dynamic load capacityrequest by email
Radial static load capacity
Axial dynamic load capacityrequest by email
Axial static load capacity
Bearing material
Ring material
Separator material
Separator type
Maximum rpm
Bearings designation

Thin Section Bearing Descriptions

1、MATERIAL AISI52100 :
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION : 0.750 × 0.750 in
CSXF040 thin section bearing

CSXF200 thin section bearing

3、CONTACT TYPE :

C : Radial Contact

E : Angular Contact

X : Four Point Contact

4、CROSS SECTION HEIGHT

AA : 3/16″

A : 1/4″

B : 5/16″

C : 3/8″

D : 1/2″

F : 3/4″

G : 1″

U : Non Square Section For Seals

5、SUFFIX

2RS : Increased Width With Two Seals

TV : Plastic Cage made from PA66

YH : brass sheet metal
