CSXF110 THIN SECTION BEARING
CSXF110
Thin Section Bearing
CSXF110 Thin Section Bearing Dentification
CS: Thin section series
X : contact type_four point contact
F: cross section height 3/4”
110: inch size ( bearing bore 11 inch )

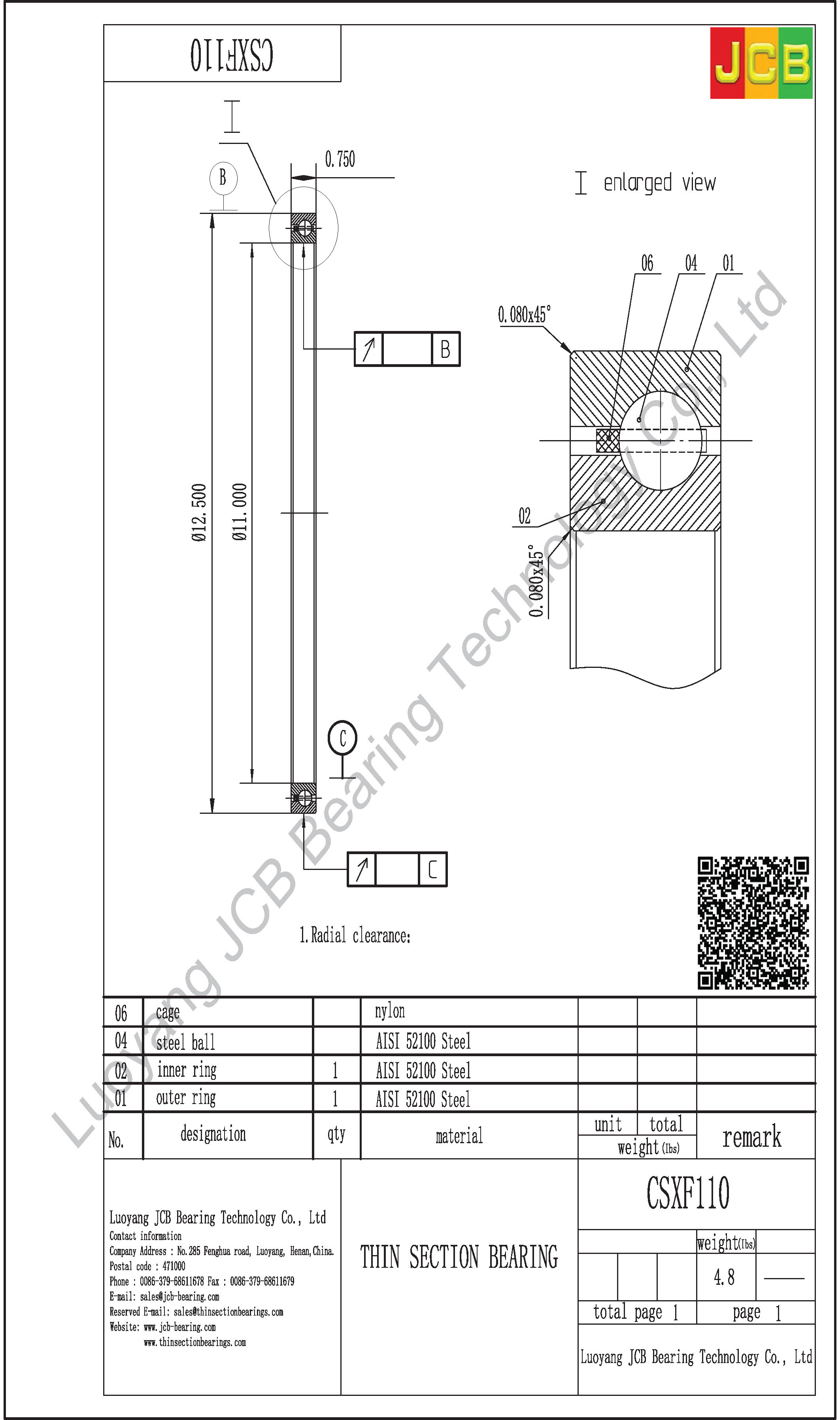

Please download rough drawing of thin section bearing for reference，formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
| Same As Specification Of CSXF110 Following Bearing Designation | ||||
| KF110XP0 | KF110XP0*JCB | CSXF110 | RF110XP0 | SF110XP0 |
CSXF110 Thin Section Bearing Specifications
| Inner Diameter (d) | 11.000″ |
| Inner Diameter Tolerance | -0.0014″– 0″ |
| For Housing ID | 12.500″ |
| Outer Diameter (D) | 12.500″ |
| Outer Diameter Tolerance | -0.0014″– 0″ |
| Width (B) | 0.7500″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Four Point contact ball |
| Contact Angle | – |
| Seal Type | Open |
| Cross Section | 3/4″ x 3/4″ |
| Weight(lbs) | 4.800 |
| Internal clearance | C0 |
| Operating temperature range | -65 to +250 °F |
| Radial dynamic load capacity | 7721 lbf |
| Radial static load capacity | 13260 lbf |
| Axial dynamic load capacity | 12490 lbf |
| Axial static load capacity | 33150 lbf |
| Bearing material | AISI 52100 |
| Ring material | AISI 52100 |
| Separator material | Brass/Composite |
| Separator type | Circular Pocket |
| Maximum rpm | 1020 rpm |
| Bearings designation | – |
Thin Section Bearing Descriptions
1、MATERIAL AISI52100 :
| Country | Standard | Steel Grade |
| AMERICA | AISI ASTM/A295 | 52100 |
| GERMANY | DIN 17030 | 100Cr6 |
| JAPAN | JIS G4805 | SUJ2 |
| ENGLAND | BS 970 | EN31(535A99) |
| CHINA | GB/T 18254 | GCr15 |
| FRANCE | NF A35-565 | 100C6 |
| SWEDEN | SWEDEN | SKF3 |
| KOREA | KS D3525 | STB2 |
| RUSSIAN | TOCT 801 | IIIX15 |
2、SERIES STANDARD CROSS SECTION : 0.750 × 0.750 in
CSXF110 thin section bearing
3、CONTACT TYPE :
C : Radial Contact
E : Angular Contact
X : Four Point Contact
4、CROSS SECTION HEIGHT
AA : 3/16″
A : 1/4″
B : 5/16″
C : 3/8″
D : 1/2″
F : 3/4″
G : 1″
U : Non Square Section For Seals
5、SUFFIX
2RS : Increased Width With Two Seals
TV : Plastic Cage made from PA66
YH : brass sheet metal
