CSXB035 THIN SECTION BEARING

CSXB035 THIN SECTION BEARING

CSXB035

Thin Section Bearing

CSXB035 Thin Section Bearing Dentification

CS: Thin section series

X : contact type_four point contact

B: cross section height 5/16”

035: inch size ( bearing bore 3.5 inch )

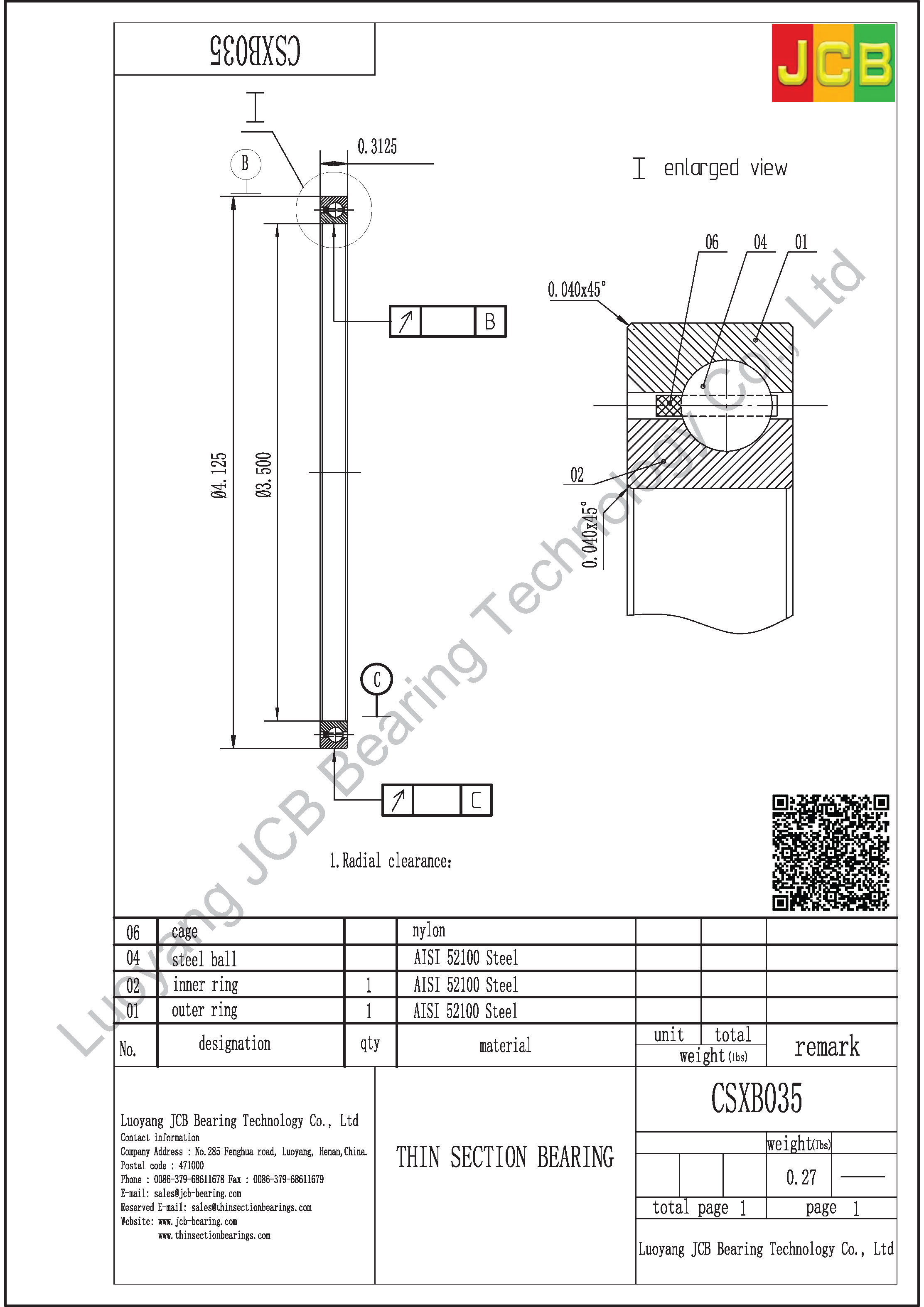

Please download rough for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com

CSXB035 of thin section bearing.pdf

Part number comparison

Same As Specification Of CSXB035 Following Bearing Designation
KB035XP0KB035XP0*JCBCSXB035RB035XP0SB035XP0

CSXB035 Thin Section Bearing Specifications

Inner Diameter (d)3.500″
Inner Diameter Tolerance-0.0008″- 0″
For Housing ID4.125″
Outer Diameter (D)4.125″
Outer Diameter Tolerance-0.0006″- 0″
Width (B)0.3125″
Width Tolerance+.000 –.005″
Bearing typeFour Point contact ball
Contact Angle
Seal TypeOpen
Cross Section5/16″ x 5/16″
Weight(lbs)0.270
Internal clearanceC0
Operating temperature range-65 to +250 °F
Radial dynamic load capacity1014 lbf
Radial static load capacity1540 lbf
Axial dynamic load capacity2100 lbf
Axial static load capacity3860 lbf
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass/Composite
Separator typeCircular Pocket
Maximum rpm3150 rpm
Bearings designation

Thin Section Bearing Descriptions

1、MATERIAL AISI52100 :
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION : 0.3125 × 0.3125 in
CSXB020 thin section bearing

CSXB035 thin section bearing

3、CONTACT TYPE :

C : Radial Contact

E : Angular Contact

X : Four Point Contact

4、CROSS SECTION HEIGHT

AA : 3/16″

A : 1/4″

B : 5/16″

C : 3/8″

D : 1/2″

F : 3/4″

G : 1″

U : Non Square Section For Seals

5、SUFFIX

2RS : Increased Width With Two Seals

TV : Plastic Cage made from PA66

YH : brass sheet metal
