CSEC040
Thin Section Bearing
CSEC040 Thin Section Bearing Dentification
CS: Thin section series
E: contact type_angular contact
C: cross section height 3/8”
040: inch size ( bearing bore 4 inch )

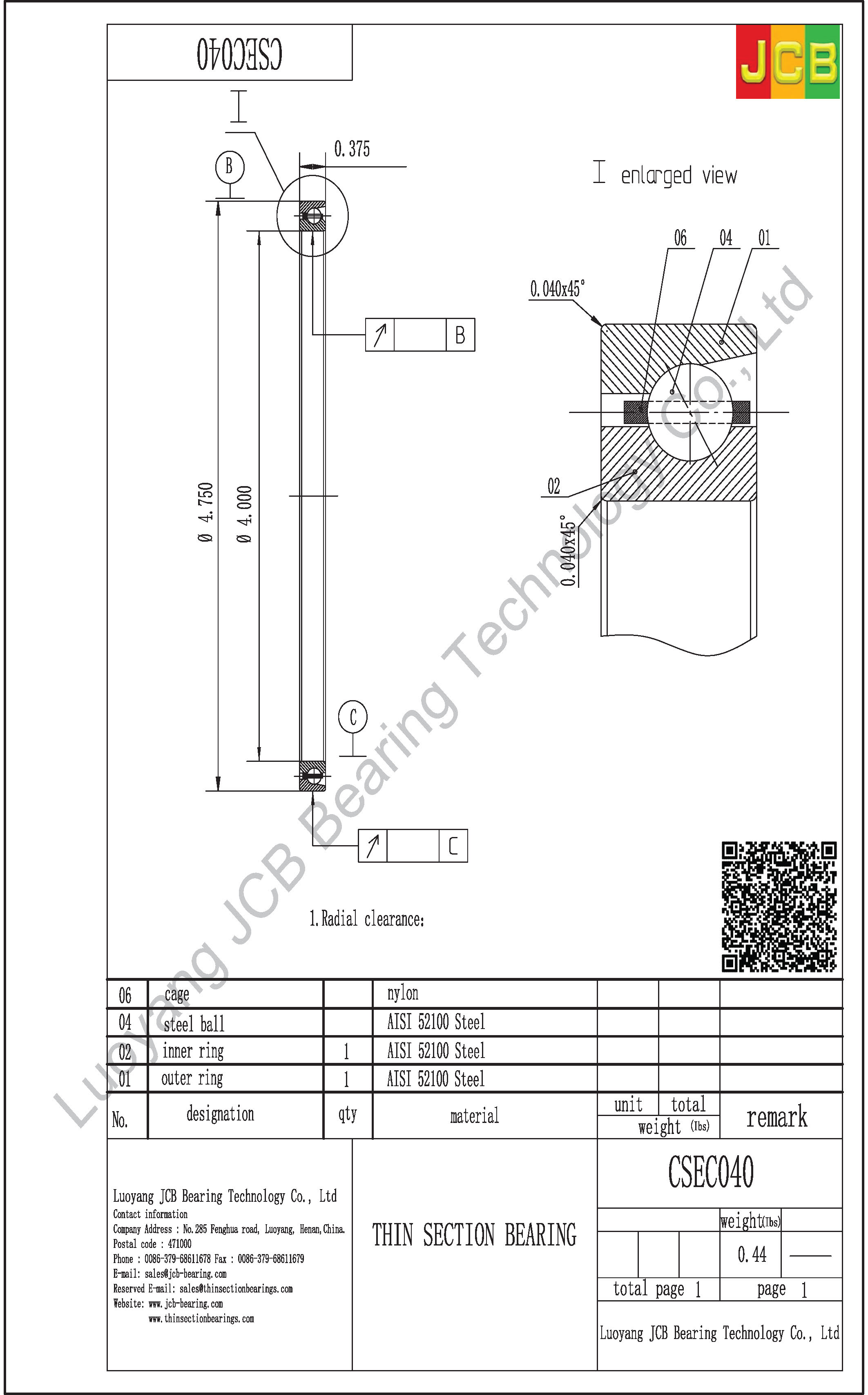

Please download rough drawing of thin section bearing for reference,formal drawing will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of CSEC040 Following Bearing Designation | |||||
KC040AR0 | KC040AR0*JCB | CSEC040 | NBA10109 | RC040AR0 | SC040AR0 |
CSEC040 Thin Section Bearing Specifications
Inner Diameter (d) | 4.000″ |
Inner Diameter Tolerance | request by email |
For Housing ID | 4.750″ |
Outer Diameter (D) | 4.750″ |
Outer Diameter Tolerance | request by email |
Width (B) | 0.375″ |
Width Tolerance | request by email |
Bearing type | Angular contact ball |
Contact Angle | 30° |
Seal Type | Open |
Cross Section | request by email |
Weight(lbs) | 0.44 |
Internal clearance | C0 |
Operating temperature range | -65 to 250 °F |
Radial dynamic load capacity | 4080 lbf |
Radial static load capacity | 7360 lbf |
Axial dynamic load capacity | 4080 lbf |
Axial static load capacity | 5610 lbf |
Bearing material | AISI 52100 |
Ring material | AISI 52100 |
Separator material | Brass |
Separator type | Circular Pocket |
Maximum rpm | 4570 rpm |
Bearings designation | – |
Thin Section Bearing Descriptions
1、MATERIAL AISI52100 :
Country | Standard | Steel Grade |
AMERICA | AISI ASTM/A295 | 52100 |
GERMANY | DIN 17030 | 100Cr6 |
JAPAN | JIS G4805 | SUJ2 |
ENGLAND | BS 970 | EN31(535A99) |
CHINA | GB/T 18254 | GCr15 |
FRANCE | NF A35-565 | 100C6 |
SWEDEN | SWEDEN | SKF3 |
KOREA | KS D3525 | STB2 |
RUSSIAN | TOCT 801 | IIIX15 |
2、SERIES STANDARD CROSS SECTION : 0.375 × 0.375 in
3、CONTACT TYPE :
C : Radial Contact
E : Angular Contact
X : Four Point Contact
4、CROSS SECTION HEIGHT
AA : 3/16″
A : 1/4″
B : 5/16″
C : 3/8″
D : 1/2″
F : 3/4″
G : 1″
U : Non Square Section For Seals
5、SUFFIX
2RS : Increased Width With Two Seals
TV : Plastic Cage made from PA66
YP : brass sheet metal
