CSCD100 Thin Section Bearing Dentification

CS: thin section series

C : contact type_radial contact

D: cross section height 1/2”

100: inch size ( bearing bore 10 inch )

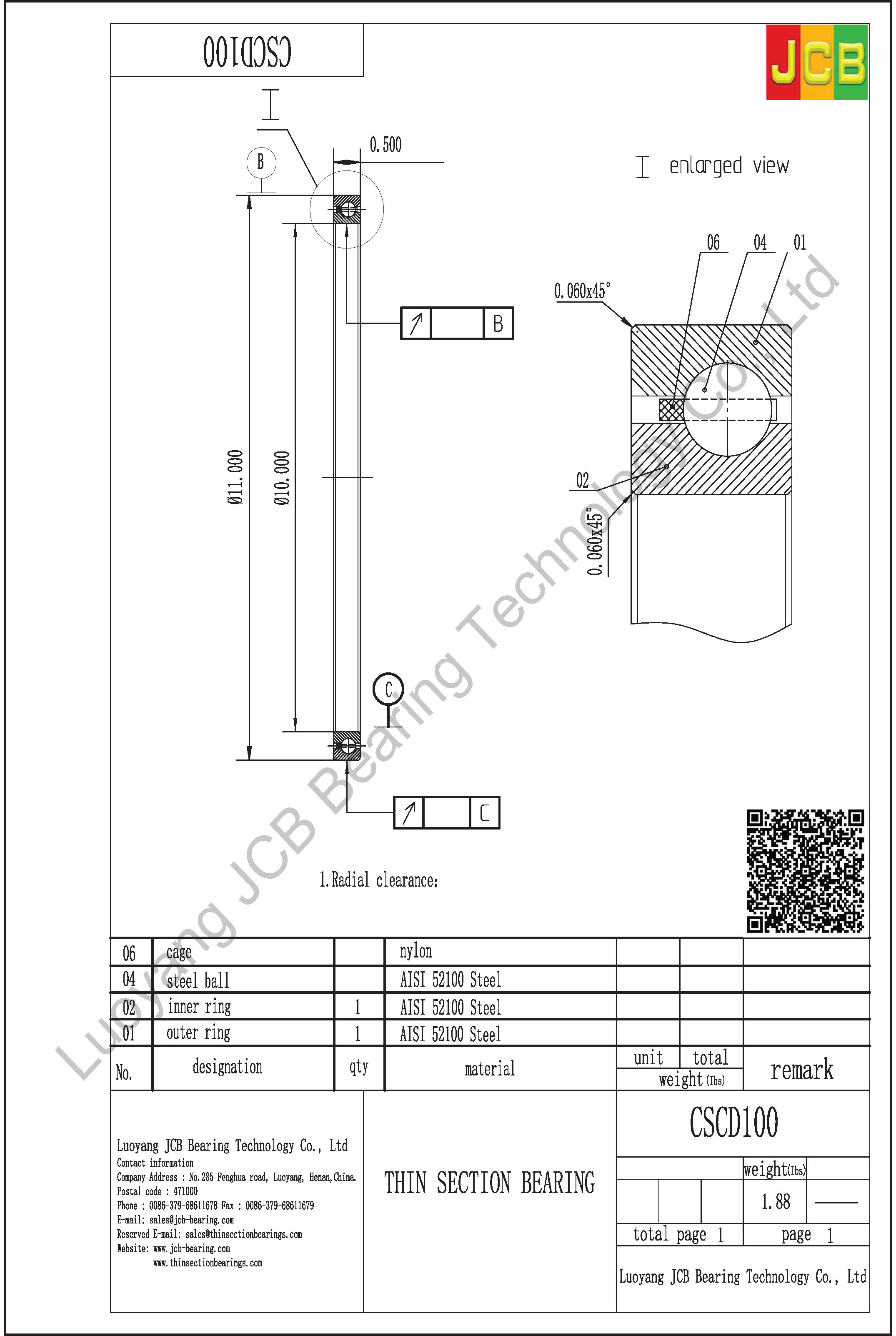

Please download rough drawing of thin section bearing  for reference,will be submitted after contact with sales@jcb-bearing.com

CSCD100 of thin section bearing.pdf

Part number comparison

Same As Specification Of CSCD100 Following Bearing Designation
KD100CP0KD100CP0*JCBCSCD100RD100CP0SD100CP0

CSCD100 Thin Section Bearing Specifications

Inner Diameter (d)10.000″
Inner Diameter Tolerance-0.0014″– 0″
For Housing ID11.000″
Outer Diameter (D)11.000″
Outer Diameter Tolerance-0.0014″– 0″
Width (B)0.5000″
Width Tolerance+.000 –.005″
Bearing typeRadial contact ball
Contact Angle
Seal TypeOpen
Cross Section1/2″ x 1/2″
Weight(lbs)1.880
Internal clearanceC0
Operating temperature range-60 to 250 °F
Radial dynamic load capacity3070 lbf
Radial static load capacity7180 lbf
Axial dynamic load capacity
Axial static load capacity
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass/Non-Metallic
Separator typeCircular Pocket
Maximum rpm1900 rpm
Bearings designation

Thin Section Bearing Descriptions

1、MATERIAL AISI52100 :
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION : 0.500 ×0.500 in
CSCD040 thin section bearing

CSCD100 thin section bearing

3、CONTACT TYPE :

C : Radial Contact

E : Angular Contact

X : Four Point Contact

4、CROSS SECTION HEIGHT

AA : 3/16″

A : 1/4″

B : 5/16″

C : 3/8″

D : 1/2″

F : 3/4″

G : 1″

U : Non Square Section For Seals

5、SUFFIX

2RS : Increased Width With Two Seals

TV : Plastic Cage made from PA66

YH : brass sheet metal
