CSCB050 THIN SECTION BEARING

CSCB050 THIN SECTION BEARING

CSCB050

Thin Section Bearing

CSCB050 Thin Section Bearing Dentification

CS: thin section series

C : contact type_radial contact

B: cross section height 5/16”

050: inch size ( bearing bore 5 inch )

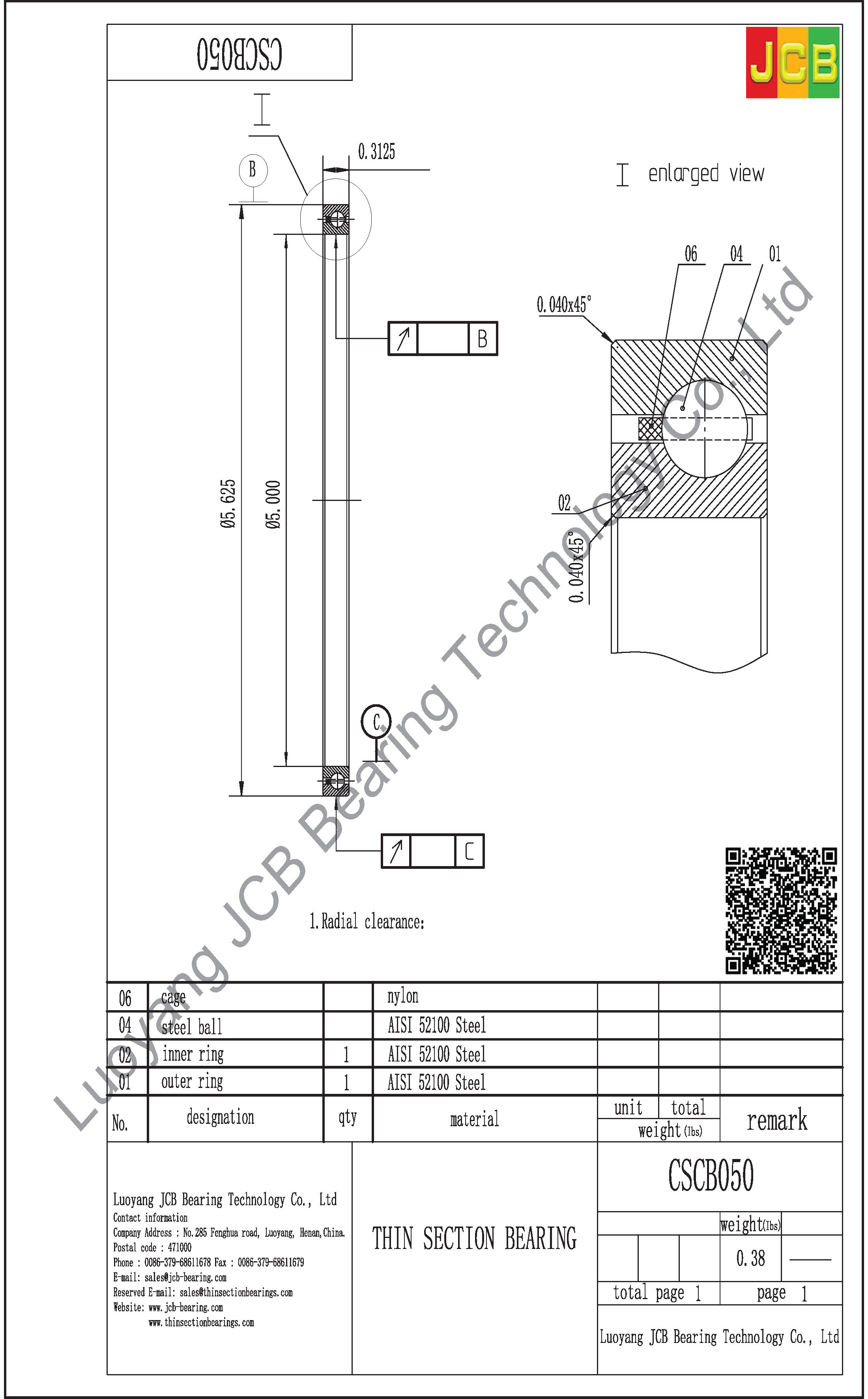

Please download rough drawing of thin section bearing  for reference,will be submitted after contact with sales@jcb-bearing.com

CSCB050 of thin section bearing.pdf

Part number comparison

Same As Specification Of CSCB050 Following Bearing Designation
KB050CP0KB050CP0*JCBCSCB050NBC12707RB050CP0SB050CP0

CSCB050 Thin Section Bearing Specifications

Inner Diameter (d)5.000″
Inner Diameter Tolerance-0.0010″– 0″
For Housing ID5.625″
Outer Diameter (D)5.625″
Outer Diameter Tolerance-0.0008″– 0″
Width (B)0.3125″
Width Tolerance+.000 –.005″
Bearing typeRadial contact ball
Contact Angle
Seal TypeOpen
Cross Section5/16″ x 5/16″
Weight(lbs)0.380
Internal clearanceC0
Operating temperature range-60 to 250 °F
Radial dynamic load capacity1100 lbf
Radial static load capacity2150 lbf
Axial dynamic load capacity
Axial static load capacity
Bearing materialAISI 52100
Ring materialAISI 52100
Separator materialBrass/Non-Metallic
Separator typeCircular Pocket
Maximum rpm3760 rpm
Bearings designation

Thin Section Bearing Descriptions

1、MATERIAL AISI52100 :
CountryStandardSteel Grade
AMERICAAISI ASTM/A29552100
GERMANYDIN 17030100Cr6
JAPANJIS G4805SUJ2
ENGLANDBS 970EN31(535A99)
CHINAGB/T 18254GCr15
FRANCENF A35-565100C6
SWEDENSWEDENSKF3
KOREAKS D3525STB2
RUSSIANTOCT 801IIIX15
2、SERIES STANDARD CROSS SECTION : 0.3125 × 0.3125 in
CSCB020 thin section bearing

CSCB050 thin section bearing

3、CONTACT TYPE :

C : Radial Contact

E : Angular Contact

X : Four Point Contact

4、CROSS SECTION HEIGHT

AA : 3/16″

A : 1/4″

B : 5/16″

C : 3/8″

D : 1/2″

F : 3/4″

G : 1″

U : Non Square Section For Seals

5、SUFFIX

2RS : Increased Width With Two Seals

TV : Plastic Cage made from PA66

YH : brass sheet metal
