Thin Section Bearing
39348001 Thin Section Bearing Dentification
If factors such as availability, cost, torque, higher tolerances, temperature resistance, corrosion resistance, and closure/protection are important in your application, please consider using the BB series four contact ball bearing as an alternative to cross roller bearing. The extra flexibility they often provide can help you achieve your design goals with optimal performance and economy.
Other common features of wheel cages include anti-corrosion packaging, custom sealing in extreme environments, application-specific lubrication and temperature.

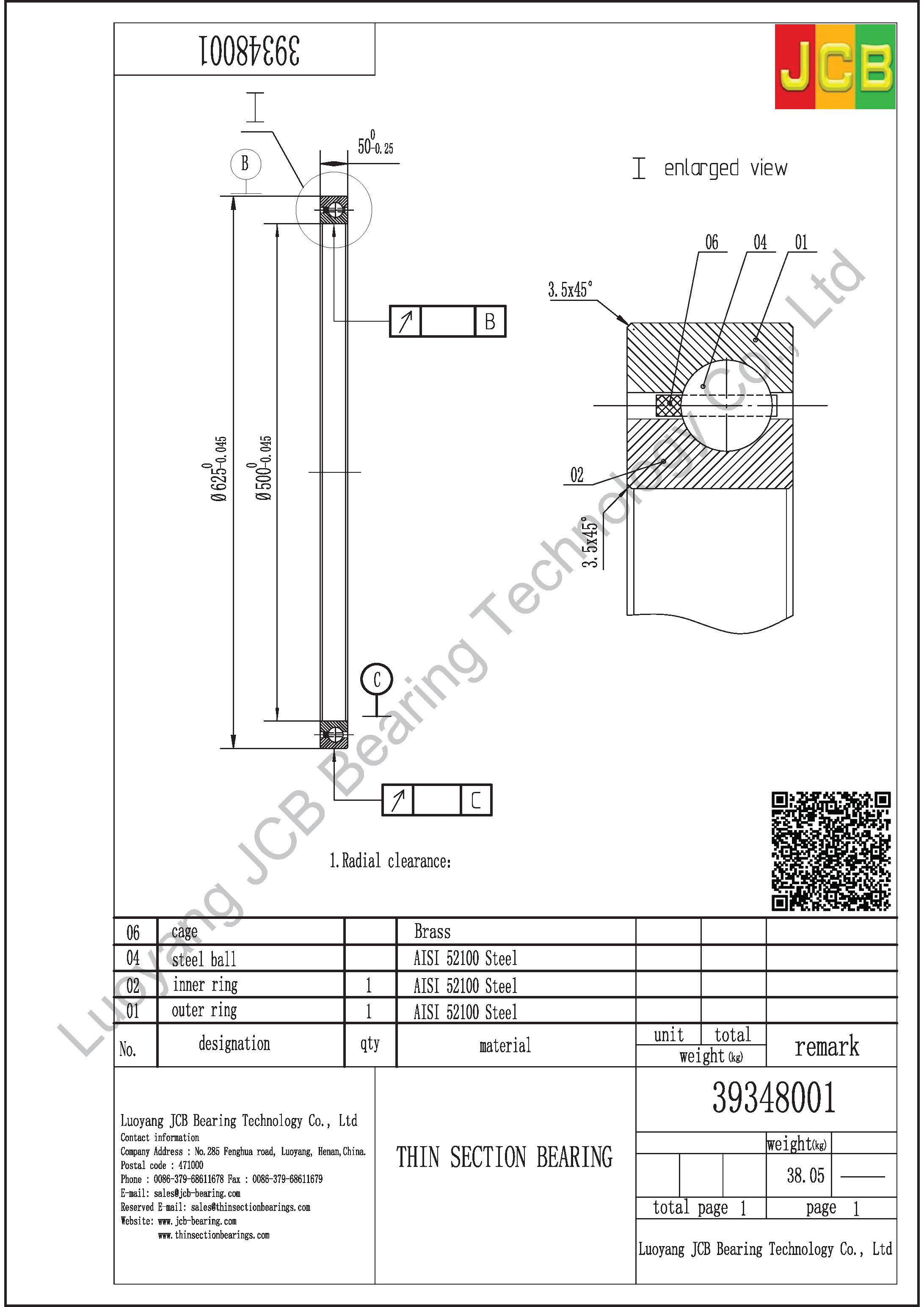

Please download rough drawing of thin section bearing for reference,formal drawing of thin section bearing 39348001 will be submitted after contact with sales@jcb-bearing.com
Part number comparison
Same As Specification Of 39348001 Following Bearing Designation | |
39348001 | BB50050 |
39348001 Thin Section Bearing Specifications
Inner Diameter (d) | 500 mm |
Inner Diameter Tolerance | request by email |
For Housing ID | 625 mm |
Outer Diameter (D) | 625 mm |
Outer Diameter Tolerance | request by email |
Width (B) | 50 mm |
Width Tolerance | request by email |
Bearing type | request by email |
Contact Angle | request by email |
Seal Type | request by email |
Cross Section | 50 mm |
Weight(lbs) | 38.05 |
Internal clearance | – |
Operating temperature range | – |
Radial dynamic load capacity | 142736 |
Radial static load capacity | – |
Axial dynamic load capacity | 238959 |
Axial static load capacity | – |
Bearing material | – |
Ring material | – |
Separator material | – |
Separator type | – |
Maximum rpm | – |
Bearings designation | – |
Thin Section Bearing Descriptions
Reali-Slim replacements for RB Series standard cross-roller bearings
The standard bearings provided do not come with seals and shields and have small clearance when assembled. Alternate features can be obtained by adding the following suffix letters to the base part number.
U : Single seal T : Single shield
UU : Double seal TT : Double shield
CO : Stanard clearance CCO : Preload
CI : Greater than standard clearance
Similar Products Of 39348001 Thin Section Bearing
Bearing No. | Bearing No. | Bearing No. |
39348001CO | 39348001U CO | 39348001UU CO |
39348001CO T | 39348001U CO T | 39348001UU CO T |
39348001CO TT | 39348001U CO TT | 39348001UU CO TT |
39348001CI | 39348001U CI | 39348001UU CI |
39348001CI T | 39348001U CI T | 39348001UU CI T |
39348001CI TT | 39348001U CI TT | 39348001UU CI TT |
39348001CCO | 39348001U CCO | 39348001UU CCO |
39348001CCO T | 39348001U CCO T | 39348001UU CCO T |
39348001CCO TT | 39348001U CCO TT | 39348001UU CCO TT |
