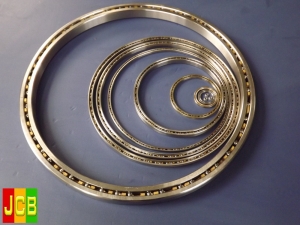

KAYDON THIN SECTION BEARING
Drawing
SA027XP0
Dentification of thin section bearing SA027XP0
S：Material AISI440C Stainless Steel_no seals or shields
A：Series standard cross section_open bearings
027：Inch Size ( bearing bore 2.750 inch )
X: Bearing Type_four point contact
P: Separator_standard one piece formed ring with snap over pockets
0: Precision_kaydon precision class 1 per ABEC 1F
Please download rough drawing of thin section bearing for reference，formal drawing of thin section bearing SA027XP0 will be submitted after contact with sales@jcb-bearing.com
Specifications of SA027XP0
| For Shaft Diameter | 2.750″ |
| Inner Diameter (d) | 2.750″ |
| Inner Diameter Tolerance | -0.0006″– 0″ |
| For Housing ID | 3.250″ |
| Outer Diameter (D) | 3.250″ |
| Outer Diameter Tolerance | -0.0005″– 0″ |
| Width (B) | 0.2500″ |
| Width Tolerance | +.000 –.005″ |
| Bearing type | Four Point contact ball |
| Contact Angle | |
| Seal Type | Open |
| Cross Section | 1/4″ x 1/4″ |
| Weight(lbs) | 0.140 |
